Part Image

MD0105K6-G - Microchip

Description: Switch ICs - Various 4CH HV PROTECTION SWITCH

Download MD0105K6-G Model

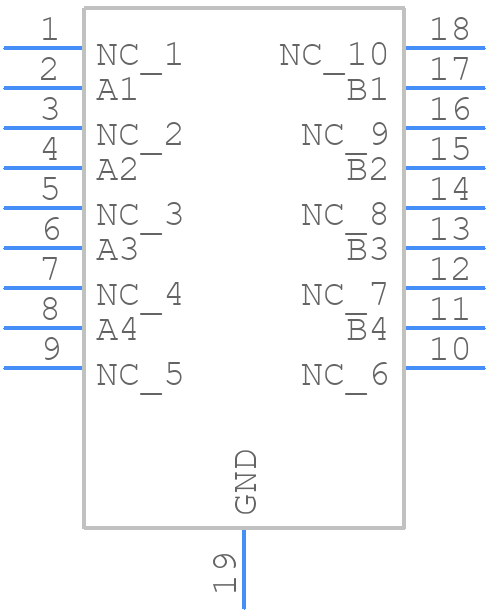

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MD0105K6-G - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MD0105K6-G
click to zoom
3D Models
MD0105K6-G - Microchip  - 3D model - Small Outline No-lead - MD0105K6-G
click to zoom

MD0105K6-G Details

  • Manufacturer Part Number:

    MD0105K6-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    VDFN-18

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PDSO-N18

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC18,.20SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

MD0105K6-G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. For input capacitors, use 10uF to 22uF values, and for output capacitors, use 4.7uF to 10uF values.
  • Use a shielded enclosure, keep the device away from antennas and other EMI sources, and implement a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
  • The recommended input voltage range is 4.5V to 5.5V, with a typical operating voltage of 5V. Ensure the input voltage is within this range to maintain device reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD0105K6-G Overview

Use the download button to access the MD0105K6-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD010, or try a keyword search, such as Other Telecom ICs
