MD15M5R7000/AA - Positronic

Description: D-Sub Standard Connectors D-Sub Male Connector 15P Solder Tail Right Angle Zinc Shell RoHS 300V,7.5A,-55°C ~ 125°C

Download MD15M5R7000/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD15M5R7000/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

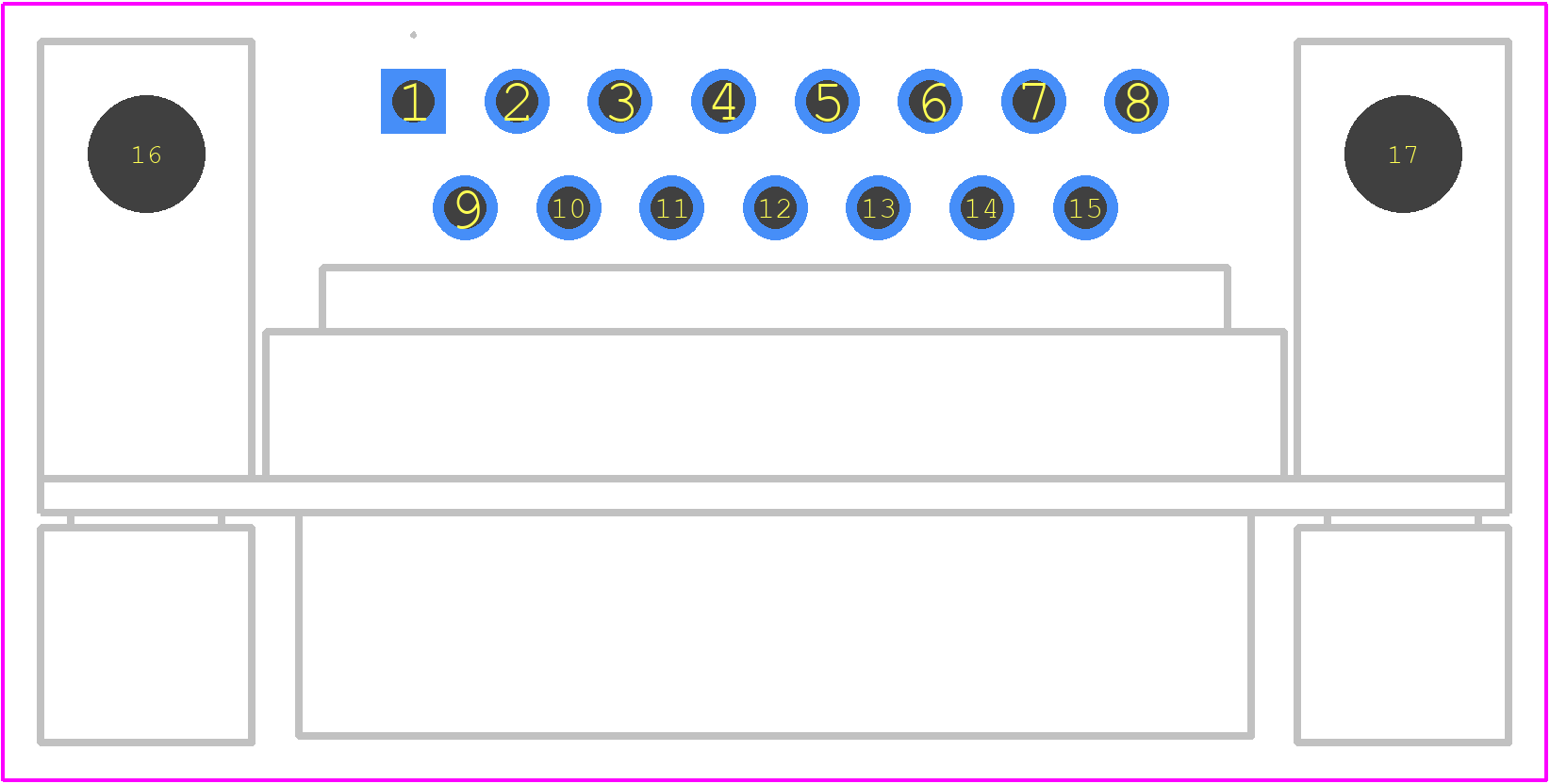

MD15M5R7000/AA - Positronic PCB footprint - Other - Other - MD15M5R7000/AA-1
click to zoom

MD15M5R7000/AA Details

  • Manufacturer Part Number:

    MD15M5R7000/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD15M5R7000/AA Overview

Use the download button to access the MD15M5R7000/AA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MD15M, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
