MD1711FG-G-M931 - Microchip

Description: Gate Drivers MOSFET Hi-Speed Ultrasound Driver

Download MD1711FG-G-M931 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

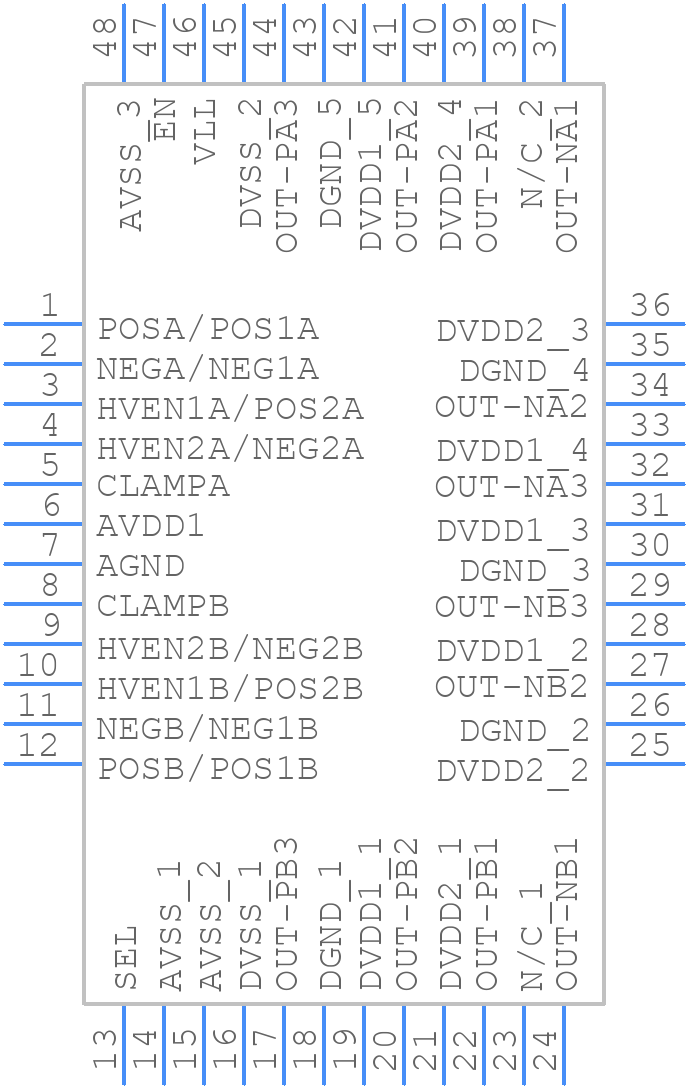

MD1711FG-G-M931 - Microchip - PCB symbol
click to zoom
PCB Footprints
MD1711FG-G-M931 - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead LQFP Package Outline (FG)
click to zoom
3D Models
MD1711FG-G-M931 - Microchip - 3D model - Quad Flat Packages - 48-Lead LQFP Package Outline (FG)
click to zoom

MD1711FG-G-M931 Details

  • Manufacturer Part Number:

    MD1711FG-G-M931

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HLFQFP, SPQFP48,.28SQ,20

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    SPQFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    12.6 V

  • Supply Voltage1-Min:

    8 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MD1711FG-G-M931 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the 'MD1711FG-G-M931 Evaluation Board User's Guide' (document number DS50002814A). It's essential to follow this layout to ensure optimal performance, especially for high-frequency signals.
  • The MD1711FG-G-M931 has multiple power modes, including low-power mode, sleep mode, and shutdown mode. Configuration is done through the SPI interface by writing specific registers. Refer to the 'MD1711FG-G-M931 Data Sheet' (document number DS40002313A) for detailed register descriptions and configuration examples.
  • The MD1711FG-G-M931 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Refer to the 'MD1711FG-G-M931 Data Sheet' for detailed temperature-related specifications.
  • Microchip provides a 'Troubleshooting Guide' (document number DS50002815A) that covers common issues and their solutions. Additionally, the 'MD1711FG-G-M931 Data Sheet' and 'MD1711FG-G-M931 Evaluation Board User's Guide' provide detailed information on device operation and configuration.
  • Yes, the MD1711FG-G-M931 is a high-frequency device and requires proper EMI/EMC design considerations. Microchip recommends following the 'EMI/EMC Design Considerations' section in the 'MD1711FG-G-M931 Data Sheet' and using proper shielding, grounding, and layout techniques to minimize EMI/EMC issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD1711FG-G-M931 Overview

Use the download button to access the MD1711FG-G-M931 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MD171, or try a keyword search, such as Other Interface ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
