MD2-60ST footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

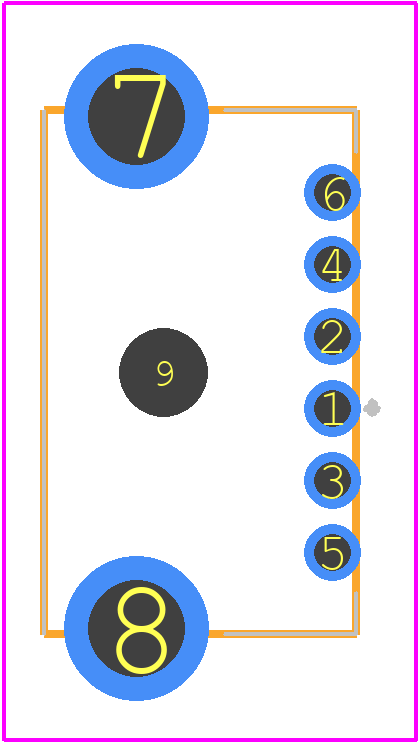

MD2-60ST - Same Sky PCB footprint - Other - Other - MD2-60ST

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MD2-60ST
Part Number MD2-60ST
Manufacturer Same Sky
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - MD2-60ST
Released Date Apr 1, 2018
Last Modified Date Jul 25, 2026 11:43 AM UTC
Pinout / Pin List Click Here (Member Only)

MD2-60ST Details

Manufacturer Part Number:
MD2-60ST
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Same Sky
YTEOL:
0
Board Mounting Option:
PEG
Body Breadth:
0.433 inch
Body Depth:
0.307 inch
Body Length:
0.516 inch
Body/Shell Style:
JACK
Connector Type:
MINI DIN CONNECTOR
Contact Gender:
FEMALE
Contact Resistance:
30 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
250VAC V
Durability:
1000 Cycles
EMI Shielded:
YES
Insertion Force-Max:
44.1 N
Insulation Resistance:
50000000 Ω
Insulator Material:
LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.118 inch
Termination Type:
SOLDER
Total Number of Contacts:
6
