MD50M5R8N00 - Positronic

Description: D-Sub Standard Connectors D-Sub Male Connector 50P Solder Tail Right Angle Zinc Shell Boardlock

Download MD50M5R8N00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MD50M5R8N00 - Positronic - PCB symbol
click to zoom
PCB Footprints

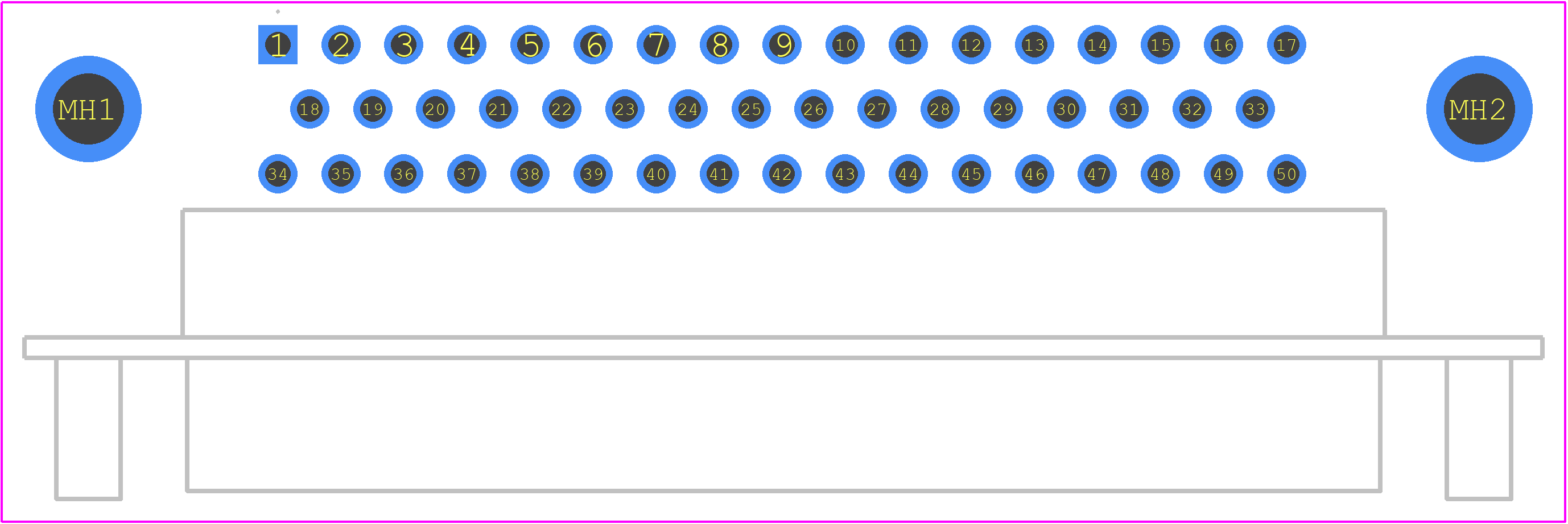

MD50M5R8N00 - Positronic PCB footprint - Other - Other - MD50M5R8N00-3
click to zoom

MD50M5R8N00 Details

  • Manufacturer Part Number:

    MD50M5R8N00

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: MIL-DTL-24308; IEC 60807-2, IEC 60807-3, POLARIZED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.605 inch

  • Body Depth:

    0.395 inch

  • Body Length:

    2.626 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    YES

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    LOCKNUT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Rated Current (Signal):

    7.5 A

  • Shell Finish:

    ZINC/CHROMATE

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

MD50M5R8N00 Frequently Asked Questions (FAQs)

  • The recommended torque value is 1.5-2.5 Nm (13-22 in-lbs) for mating and unmating the connector. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the MD50M5R8N00 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302F, which includes sinusoidal vibration testing at 20 Gs peak acceleration.
  • The MD50M5R8N00 is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand humid environments. However, it's crucial to ensure that the connector is properly sealed and mated to maintain its environmental resistance.
  • The MD50M5R8N00 is rated for a minimum of 500 mating cycles, but this can vary depending on the application, mating force, and environmental conditions. It's recommended to consult the manufacturer's guidelines and perform testing to determine the optimal mating cycle count for your specific use case.
  • The MD50M5R8N00 is designed to be compatible with other manufacturers' mating connectors that meet the MIL-DTL-55302F standard. However, it's essential to ensure that the mating connector meets the required specifications and is properly mated to ensure reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MD50M5R8N00 Overview

Use the download button to access the MD50M5R8N00 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MD50M, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
