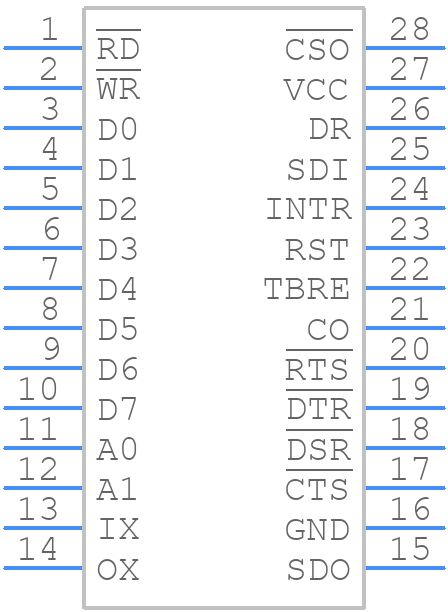

Symbol

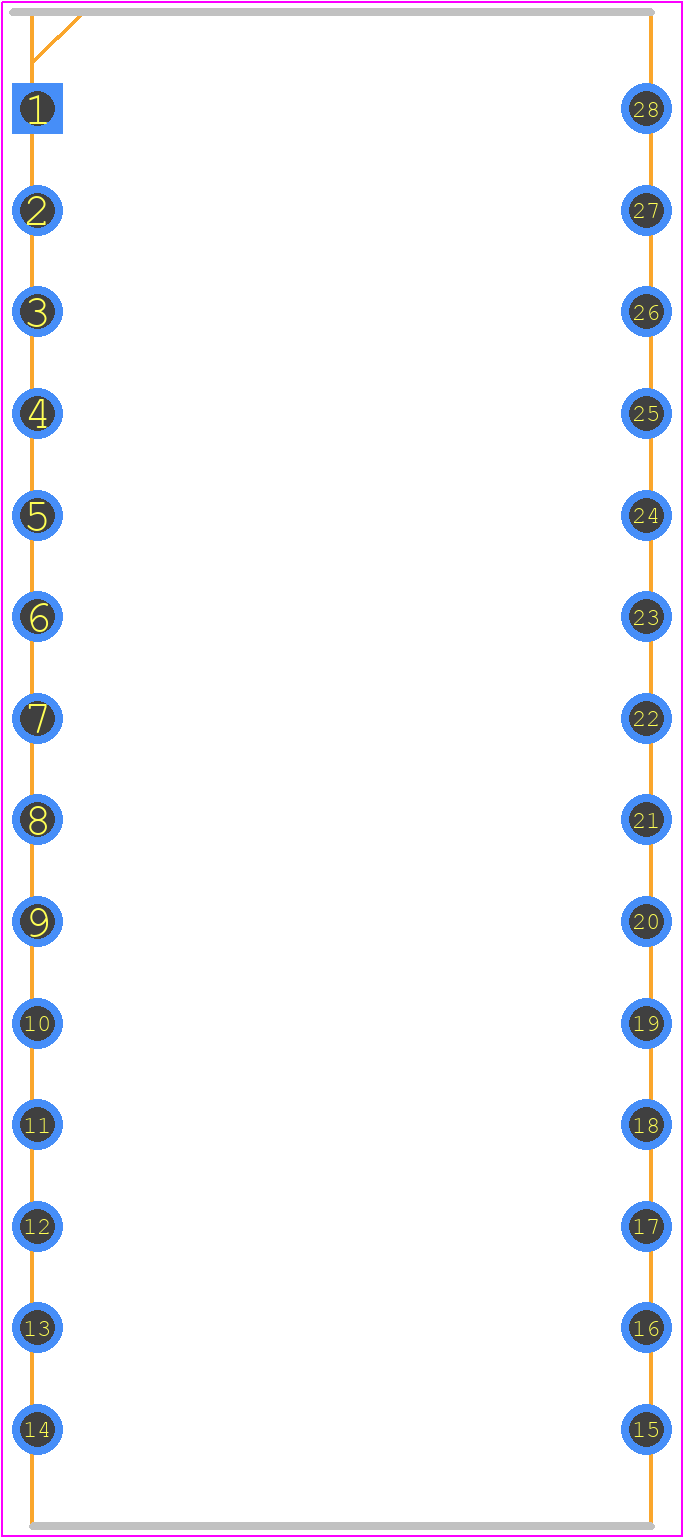

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MD82C52/BZ
- Part Number MD82C52/BZ
- Manufacturer Renesas Electronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - F28.6-2021
- Released Date Apr 5, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
MD82C52/BZ Details
-
Manufacturer Part Number:
MD82C52/BZ
-
Manufacturer:
Renesas Electronics Corporation
Trust Checks
Community Provided
System Verified
Community Approved
MD82C52/BZ Overview
Use the download button to access the MD82C52/BZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MD82C,
or try a keyword search, such as Serial IO/Communication Controllers
