- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MDB-44H+
- Part Number MDB-44H+
- Manufacturer Mini-Circuits
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - DQ1225
- Released Date Jun 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MDB-44H+ Details
-
Manufacturer Part Number:
MDB-44H+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-01-12
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Additional Feature:
HIGH ISOLATION
-
Construction:
COMPONENT
-
Conversion Loss-Max:
13.4 dB
-
Input Power-Max (CW):
21 dBm
MDB-44H+ Frequently Asked Questions (FAQs)
-
A multi-layer PCB with a solid ground plane and a star-grounding scheme is recommended. Ensure that the device is placed close to the ground plane and that all grounds are connected to a single point.
-
Use a low-ESR capacitor for decoupling, keep the input and output tracks short and symmetrical, and use a high-frequency-compatible PCB material. Also, ensure that the device is properly terminated and matched to the system impedance.
-
The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +100°C with reduced performance and reliability.
-
Yes, but the device's performance may be affected. The MDB-44H+ is optimized for 50Ω systems, but it can be used in non-50Ω systems with proper impedance matching and termination.
-
The recommended power supply voltage is +5V ±10%, and the maximum current rating is 200mA. Ensure that the power supply is well-regulated and has low noise and ripple.
Trust Checks
Community Provided
System Verified
Community Approved
MDB-44H+ Overview

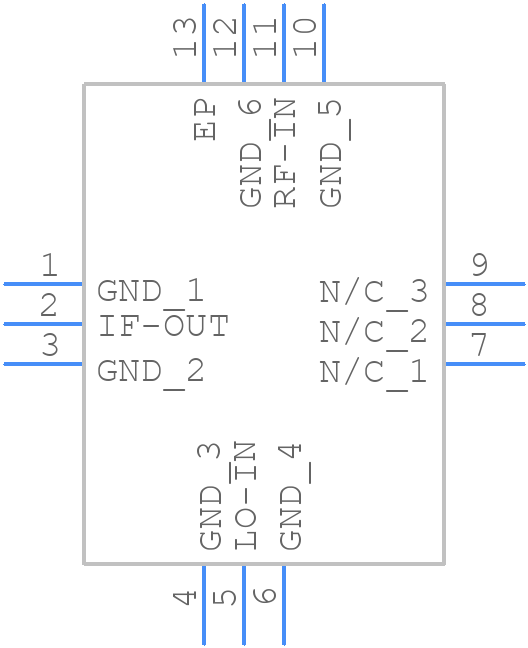

Use the download button to access the MDB-44H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDB-4,
or try a keyword search, such as RF/Microwave Mixers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
