MDBT42V-P512K - Raytac

Description: Module with PCB Antenna - 512k flash memory & 64KB RAM- nRF52832

Download MDBT42V-P512K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

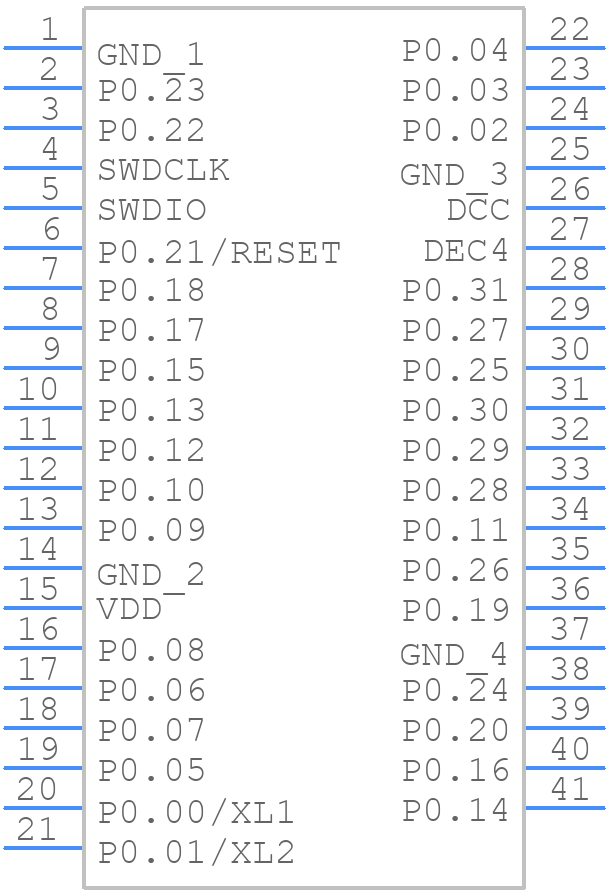

Symbol
MDBT42V-P512K - Raytac - PCB symbol
click to zoom
PCB Footprints
MDBT42V-P512K - Raytac PCB footprint - Other - Other - MDBT42V-P512K-4
click to zoom
3D Models
MDBT42V-P512K - Raytac - 3D model - Other - MDBT42V-P512K-4
click to zoom

MDBT42V-P512K Details

  • Manufacturer Part Number:

    MDBT42V-P512K

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-29

  • Manufacturer:

    RAYTAC

  • JESD-30 Code:

    R-XXMA-N29

  • Length:

    8.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    6.4 mm

MDBT42V-P512K Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MDBT42V-P512K is -40°C to 85°C.
  • The MDBT42V-P512K's BLE settings can be configured using the Nordic nRF52832's SoftDevice API. Refer to the Nordic Semiconductor documentation for more information.
  • The maximum transmission power of the MDBT42V-P512K is +4 dBm.
  • No, the MDBT42V-P512K is designed to work with Nordic Semiconductor's SoftDevice BLE stack. Using a non-Nordic BLE stack may not be compatible or supported.
  • Firmware updates can be performed using Nordic Semiconductor's nRFutil tool or other compatible programming tools. Refer to the RAYTAC documentation for specific instructions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MDBT42V-P512K Overview

Use the download button to access the MDBT42V-P512K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDBT4, or try a keyword search, such as Other Telecom ICs
