MDP1603100RGD04 - Vishay

Description: Resistor Networks & Arrays 16pin 100ohms 2% Isolated

Download MDP1603100RGD04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MDP1603100RGD04 - Vishay - PCB symbol
click to zoom
PCB Footprints

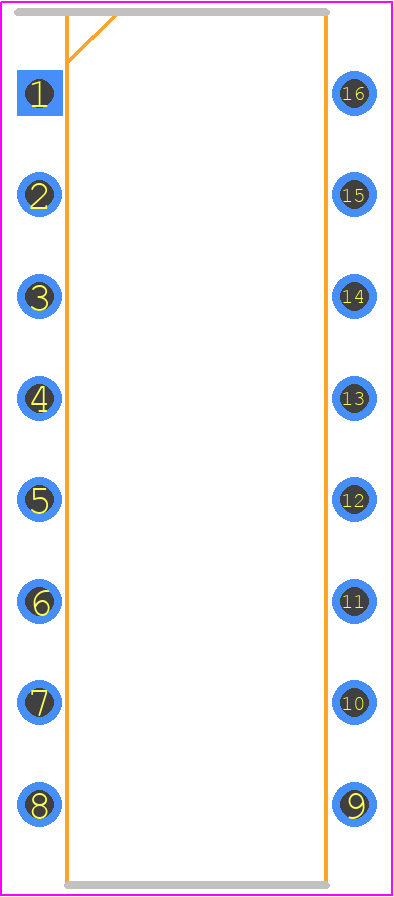

MDP1603100RGD04 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MDP1603100RGD04
click to zoom
3D Models
MDP1603100RGD04 - Vishay - 3D model - Dual-In-Line Packages - MDP1603100RGD04
click to zoom

MDP1603100RGD04 Details

  • Manufacturer Part Number:

    MDP1603100RGD04

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.36

  • Construction:

    Molded Case

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    100 Ω

  • JESD-609 Code:

    e0

  • Lead Length:

    3.3 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    3.05 mm

  • Package Length:

    21.59 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    6.35 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    1.92 W

  • Rated Temperature:

    70 °C

  • Resistance:

    100 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    8525

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

MDP1603100RGD04 Frequently Asked Questions (FAQs)

  • The recommended storage condition for MDP1603100RGD04 is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 60%.
  • Handle the MDP1603100RGD04 by the body, avoiding touching the leads or the ceramic component. Use anti-static wrist straps, mats, or floors to prevent electrostatic discharge damage.
  • The maximum allowable voltage derating for the MDP1603100RGD04 is 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • The MDP1603100RGD04 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency, parasitic inductance, and capacitive reactance when designing the circuit.
  • Use a soldering iron with a temperature range of 250°C to 270°C, and a solder with a melting point above 180°C. Apply a small amount of solder to the pad, and ensure the component is properly aligned before soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MDP1603100RGD04 Overview

Use the download button to access the MDP1603100RGD04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MDP16, or try a keyword search, such as Array/Network Resistors
