The recommended land pattern for MEA1608L75R0TA0G can be found in the TDK Corporation's application note or footprint library. It is essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and electrical issues.
To prevent damage, handle the MEA1608L75R0TA0G by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats. Also, ensure that the assembly process follows the recommended soldering temperature and time to prevent thermal shock.
The maximum operating temperature range for MEA1608L75R0TA0G is -55°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the operating temperature range may vary depending on the specific application.
The MEA1608L75R0TA0G is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with TDK Corporation's technical support team to determine the component's suitability and to discuss potential customization options.
Store the MEA1608L75R0TA0G in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Ensure the storage area is clean, dry, and free from contaminants. Follow the recommended storage conditions to maintain the component's shelf life.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA1608L75R0TA0G Overview

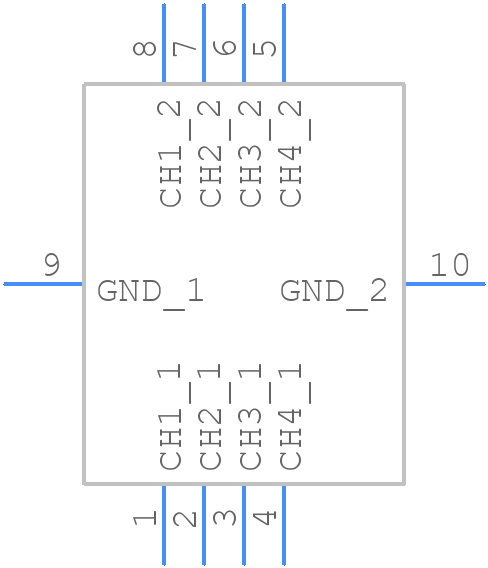

Use the download button to access the MEA1608L75R0TA0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
