The recommended land pattern for MEA1608LC040T001 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. The land pattern should ensure a secure and reliable connection to the PCB.
To prevent damage, handle the MEA1608LC040T001 component by the edges, avoid touching the electrodes, and use an anti-static wrist strap or mat. Also, ensure the assembly process follows the recommended temperature and humidity conditions.
The maximum allowable voltage derating for MEA1608LC040T001 depends on the specific application and operating conditions. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and prevent premature failure. Consult TDK's technical support for specific guidance.
The MEA1608LC040T001 is designed for general-purpose use, but it may not be suitable for high-frequency applications above 100 MHz. For high-frequency applications, consider using TDK's high-frequency-specific components, such as the MEA series with a 'H' suffix.
Store the MEA1608LC040T001 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. The ideal storage conditions are a cool, dry place with a temperature range of 5°C to 30°C and humidity below 60%.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA1608LC040T001 Overview

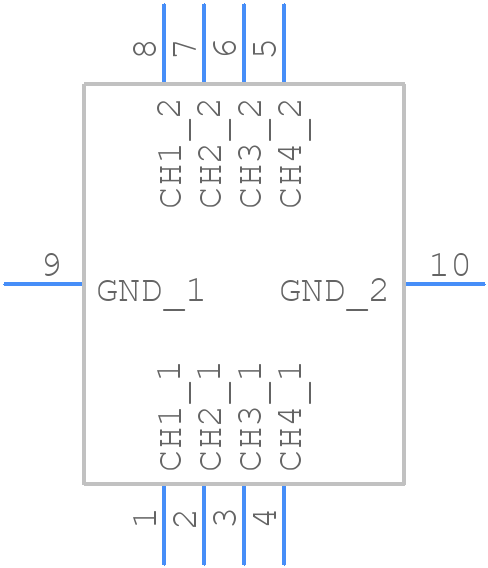

Use the download button to access the MEA1608LC040T001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
