MEA1608PE270TA0G - TDK

Description: 3-terminal Filters, Cut-Off frequency=240MHz, L x W x T :

Download MEA1608PE270TA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

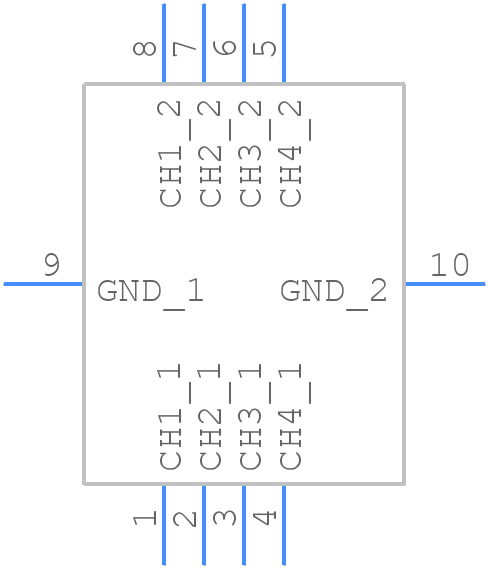

MEA1608PE270TA0G - TDK - PCB symbol
click to zoom
PCB Footprints
MEA1608PE270TA0G - TDK PCB footprint - Other - Other - MEA1608
click to zoom
3D Models
MEA1608PE270TA0G - TDK - 3D model - Other - MEA1608
click to zoom

MEA1608PE270TA0G Details

  • Manufacturer Part Number:

    MEA1608PE270TA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.39

  • Capacitance:

    27 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    6.3 V

  • Width:

    0.8 mm

MEA1608PE270TA0G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MEA1608PE270TA0G can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • To prevent damage, it is recommended to handle the MEA1608PE270TA0G by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum allowable voltage derating for the MEA1608PE270TA0G is typically 80% of the rated voltage. However, it is recommended to consult with TDK Corporation's application engineers or refer to the device's datasheet for specific derating guidelines.
  • The MEA1608PE270TA0G is rated for operation up to 125°C. However, it is recommended to consult with TDK Corporation's application engineers or refer to the device's datasheet for specific temperature derating guidelines and to ensure the component's reliability in high-temperature environments.
