Part Image

mEZDPD3603A - Monolithic Power Systems (MPS)

Description: Non-Isolated DC/DC Converters Programmable 36V DC/DC Power Supply up to 3A

Download mEZDPD3603A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

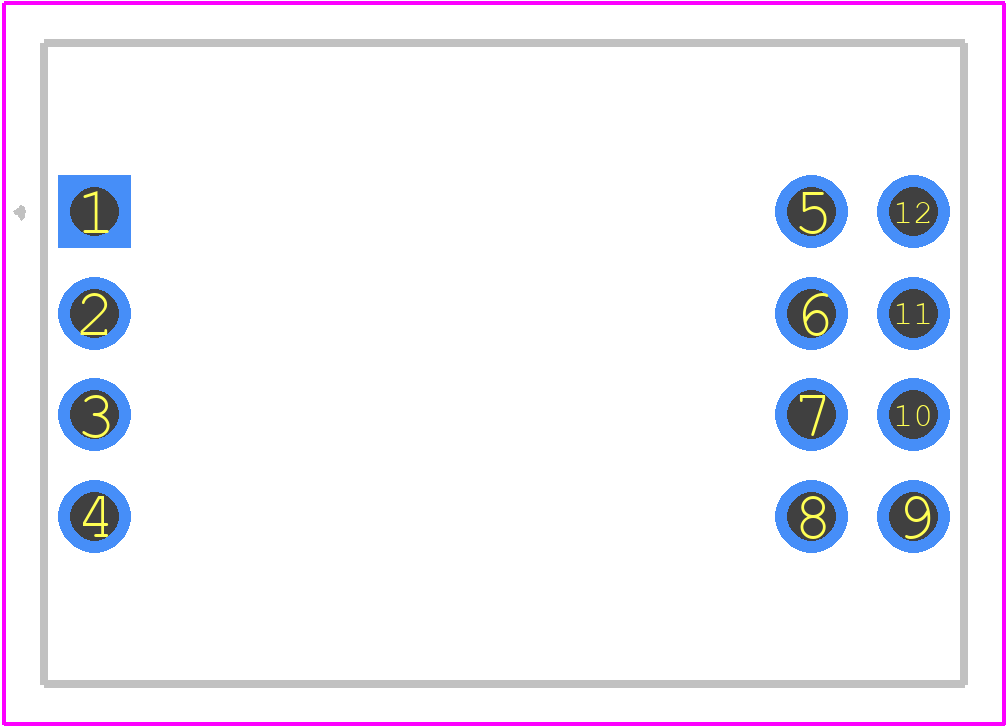

mEZDPD3603A - Monolithic Power Systems (MPS) PCB footprint - Other - Other - mEZDPD3603A-4
click to zoom
3D Models
mEZDPD3603A - Monolithic Power Systems (MPS)  - 3D model - Other - mEZDPD3603A-4
click to zoom

mEZDPD3603A Details

  • Manufacturer Part Number:

    MEZDPD3603A

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-01-07

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

mEZDPD3603A Frequently Asked Questions (FAQs)

  • A good PCB layout for the MEZDPD3603A should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the copper plane as large as possible to dissipate heat efficiently.
  • To ensure the MEZDPD3603A operates within the recommended TJ range (−40°C to 125°C), implement proper thermal management. Use a heat sink, thermal interface material, and ensure good airflow around the device. Monitor the device's temperature using the thermal monitoring pin (TMP) and adjust the system design accordingly.
  • The recommended input capacitor type is a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7 μF to 10 μF. This ensures stable operation and minimizes input voltage ripple.
  • Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a value between 10 μF to 22 μF. The output capacitor should be a ceramic capacitor (X5R or X7R dielectric) or a polymer capacitor. Ensure the capacitor's voltage rating is higher than the output voltage.
  • The EN (Enable) pin is used to enable or disable the MEZDPD3603A. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use a logic signal (e.g., from a microcontroller) to control the EN pin. Ensure the EN pin is properly terminated with a pull-up or pull-down resistor to prevent unwanted state changes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

mEZDPD3603A Overview

Use the download button to access the mEZDPD3603A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like mEZDP, or try a keyword search, such as Power Supply Modules
