MF1/2CC1002F - KOA Speer

Description: Metal Film Resistors - Through Hole 10Kohms 1% 50PPM

Download MF1/2CC1002F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MF1/2CC1002F - KOA Speer - PCB symbol
click to zoom
PCB Footprints

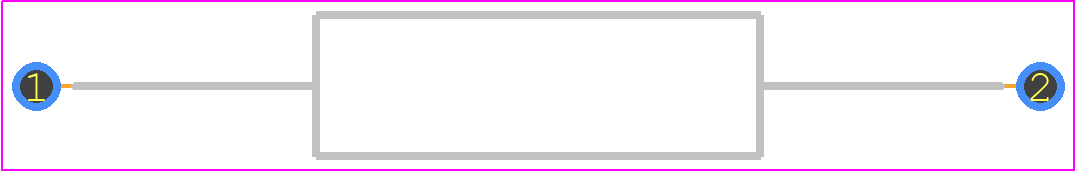

MF1/2CC1002F - KOA Speer PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - r MF1/2
click to zoom
3D Models
MF1/2CC1002F - KOA Speer - 3D model - Resistors, Axial Diameter Horizontal Mounting - r MF1/2
click to zoom

MF1/2CC1002F Details

  • Manufacturer Part Number:

    MF1/2CC1002F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    KOA Speer Electronics Inc

  • YTEOL:

    8

  • Construction:

    Tubular

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.6 mm

  • Lead Length:

    28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    3.5 mm

  • Package Length:

    9 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    IEC60115-1

  • Resistance:

    10000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu) - hot dipped

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    350 V
