- Part Number MF10CCWM/NOPB
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MF10CCWM/NOPB
- Released Date Apr 16, 2015
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MF10CCWM/NOPB Details
-
Manufacturer Part Number:
MF10CCWM/NOPB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SO-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
MF10CCWM/NOPB Frequently Asked Questions (FAQs)
-
A good PCB layout for the MF10CCWM/NOPB involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, it's crucial to ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). It's also recommended to add a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
The MF10CCWM/NOPB can handle input voltages up to 18V, but it's recommended to operate it within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
-
The MF10CCWM/NOPB is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. It's recommended to consult the datasheet and application notes for guidance on high-temperature operation.
-
To troubleshoot issues with the MF10CCWM/NOPB, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check the output waveform and ensure that it's within the specified parameters. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
Community Provided
System Verified
Community Approved
MF10CCWM/NOPB Overview

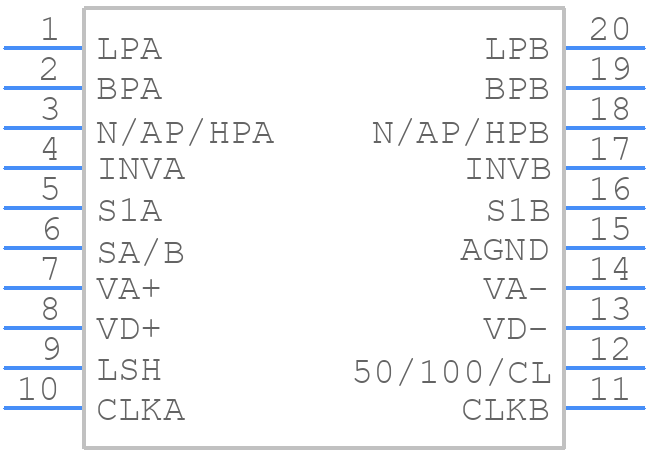

Use the download button to access the MF10CCWM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MF10C,
or try a keyword search, such as Active Filters
