MF10CCWM - Texas Instruments

Description: Capacitor filter,MF10CCWM 0.1Hz-30kHz

Download MF10CCWM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

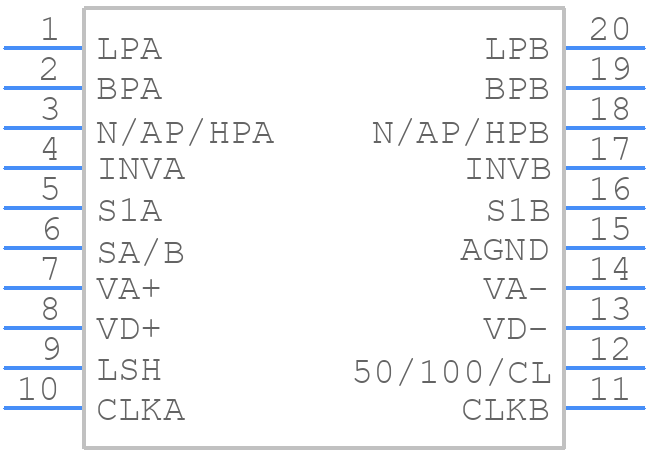

MF10CCWM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MF10CCWM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G20)
click to zoom
3D Models
MF10CCWM - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G20)
click to zoom

MF10CCWM Details

  • Manufacturer Part Number:

    MF10CCWM

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e0

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Order:

    2ND

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    220

  • Qualification Status:

    Not Qualified

  • Response:

    UNIVERSAL

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Transfer Characteristics:

    BUTTERWORTH/BESSEL/ELLIPTIC/CHEBYSHEV

MF10CCWM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance.
  • The MF10CCWM is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and avoiding hot spots on the PCB.
  • The absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device. Ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • The MF10CCWM has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent damage.
  • The recommended power-up sequence is to apply VCC first, followed by the input signal. This ensures proper device initialization and prevents potential latch-up or damage.
