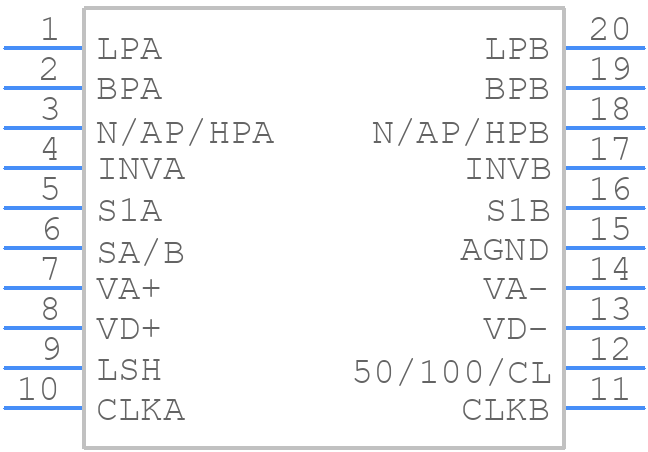

MF10CCWMX/NOPB - Texas Instruments

MF10CCWMX/NOPB Details

• Manufacturer Part Number:

  MF10CCWMX/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Active Filter Type:

  SWITCHED CAPACITOR FILTER

• Additional Feature:

  CAUER FILTER CONFIGURATION CAN ALSO BE FORMED

• Center or Cutoff Freq Rng-Max:

  20 kHz

• Center or Cutoff Freq Rng-Min:

  0.0002 kHz

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -7 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Order:

  2ND

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Poles and Zeros:

  2 AND 0

• Qualification Status:

  Not Qualified

• Response:

  UNIVERSAL

• Seated Height-Max:

  2.65 mm

• Supply Current-Max (Isup):

  12 mA

• Supply Voltage-Max (Vsup):

  7 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transfer Characteristics:

  BUTTERWORTH/BESSEL/CHEBYSHEV

• Width:

  7.5 mm
