Part Image

MF4SAM3HN/9BA659Z - NXP

Description: Supports MIFARE Crypto1, DES, TDEA (112 bits and 168 bits), AES (128 bits, 192 bits and 256 bits), RSA (up to 2048 bits) and ECC (up to 256 bits) cryptography • Supported NXP products: – MIFARE DESFire EV3, EV2, EV1, and Light – MIFARE Plus EV2, EV1, X, S, and SE – MIFARE Classic EV1 – MIFARE Ultralight AES, C and EV1

Download MF4SAM3HN/9BA659Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

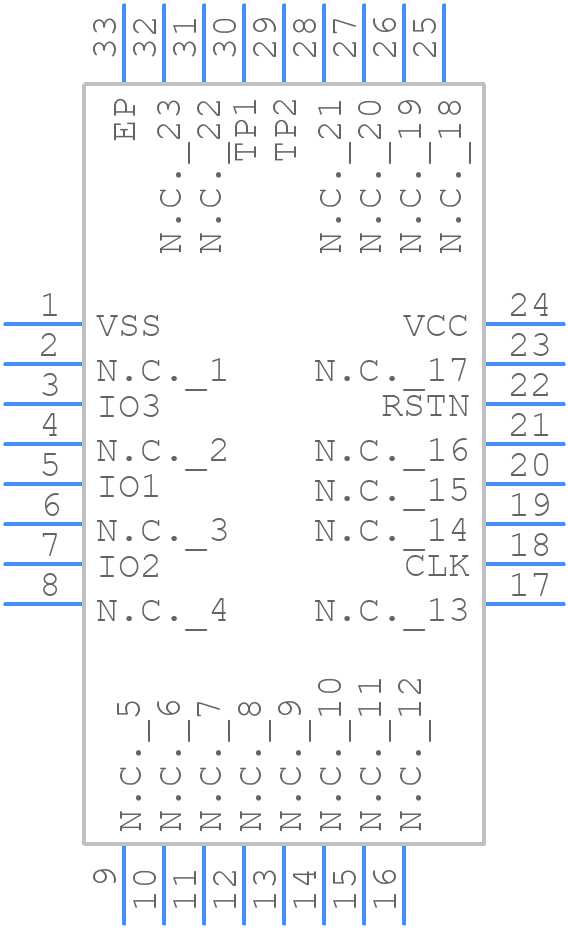

MF4SAM3HN/9BA659Z - NXP - PCB symbol
click to zoom
PCB Footprints
MF4SAM3HN/9BA659Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT617-3...
click to zoom
3D Models
MF4SAM3HN/9BA659Z - NXP - 3D model - Quad Flat No-Lead - SOT617-3...
click to zoom

MF4SAM3HN/9BA659Z Details

  • Manufacturer Part Number:

    MF4SAM3HN/9BA659Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-32

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Additional Feature:

    IT ALSO OPERATES AT 1.8V AND 3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

MF4SAM3HN/9BA659Z Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MF4SAM3HN/9BA659Z is -40°C to 85°C, with a storage temperature range of -40°C to 150°C.
  • The NFC antenna tuning requires a careful selection of the antenna design, component values, and layout. NXP provides a dedicated antenna tuning guide and a calculator tool to help with the design process. Additionally, the datasheet provides guidelines for antenna design and component selection.
  • The maximum current consumption of the MF4SAM3HN/9BA659Z depends on the operating mode and frequency. According to the datasheet, the maximum current consumption is around 50 mA in active mode and 10 μA in sleep mode.
  • NXP provides a secure boot and firmware update mechanism through its Secure Firmware Update (SFU) feature. This feature uses cryptographic techniques to ensure the authenticity and integrity of the firmware. The implementation details can be found in the datasheet and the NXP documentation.
  • NXP provides a range of development tools and SDKs for the MF4SAM3HN/9BA659Z, including the NXP SDK for NFC, the NXP IDE, and the Keil µVision development environment. Additionally, third-party development tools and SDKs are available from companies like STMicroelectronics and IAR Systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MF4SAM3HN/9BA659Z Overview

Use the download button to access the MF4SAM3HN/9BA659Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MF4SA, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
