MFH2X20SG-2 - Useworld Technology

Description: 2.54mm Multi-Layer Female Socket, Dual row, Straight with 2 layers Insulator, bare contact 10mm PCB end

Download MFH2X20SG-2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MFH2X20SG-2 model

Email notifications will be applied after download.

Send part feedback

Symbol

MFH2X20SG-2 - Useworld Technology - PCB symbol

PCB Footprints

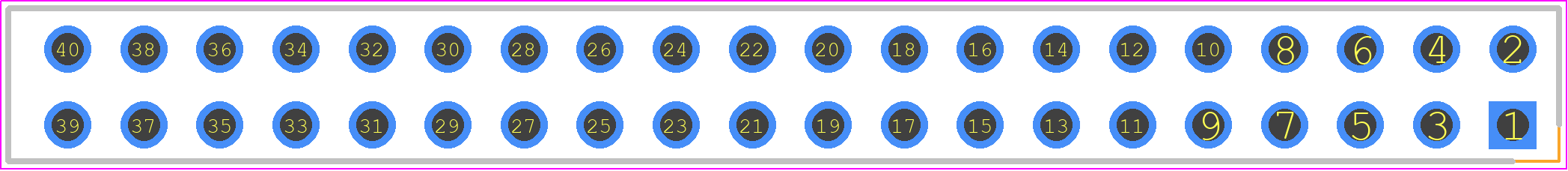

MFH2X20SG-2 - Useworld Technology PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - MFH2X20SG-2

3D Models

MFH2X20SG-2 - Useworld Technology - 3D model - Header, Receptacle - Straight PTH Box - MFH2X20SG-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for MFH2X20SG-2
Part Number MFH2X20SG-2
Manufacturer Useworld Technology
Pin Count 40
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - MFH2X20SG-2
Released Date Apr 29, 2020
Last Modified Date Dec 5, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MFH2X20SG-2 Details

Manufacturer Part Number:
MFH2X20SG-2
Manufacturer:
Useworld Technology Enterprise Ltd

Trust Checks

Community Provided

System Verified

Community Approved

MFH2X20SG-2 Overview

Use the download button to access the MFH2X20SG-2 schematic symbol, PCB footprint, and 3D model.
