MFM1714B50M50C5M04 - VICOR

Description: Power Line Filters 350W 28Vin 50Vout 22A Filter Short Pin

Download MFM1714B50M50C5M04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

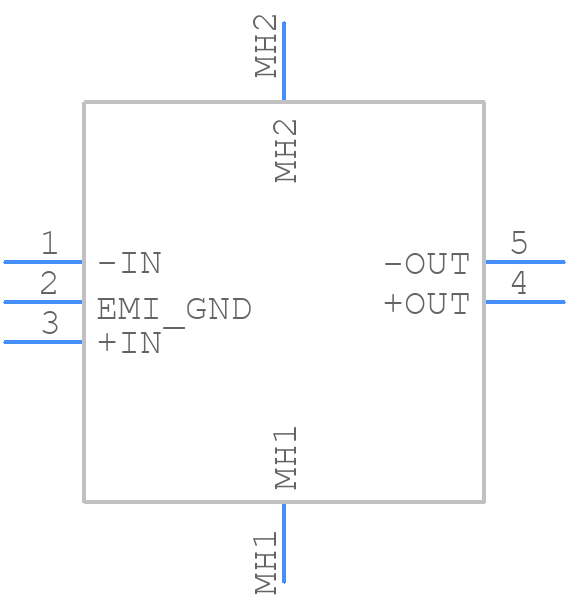

MFM1714B50M50C5M04 - VICOR - PCB symbol
click to zoom
PCB Footprints

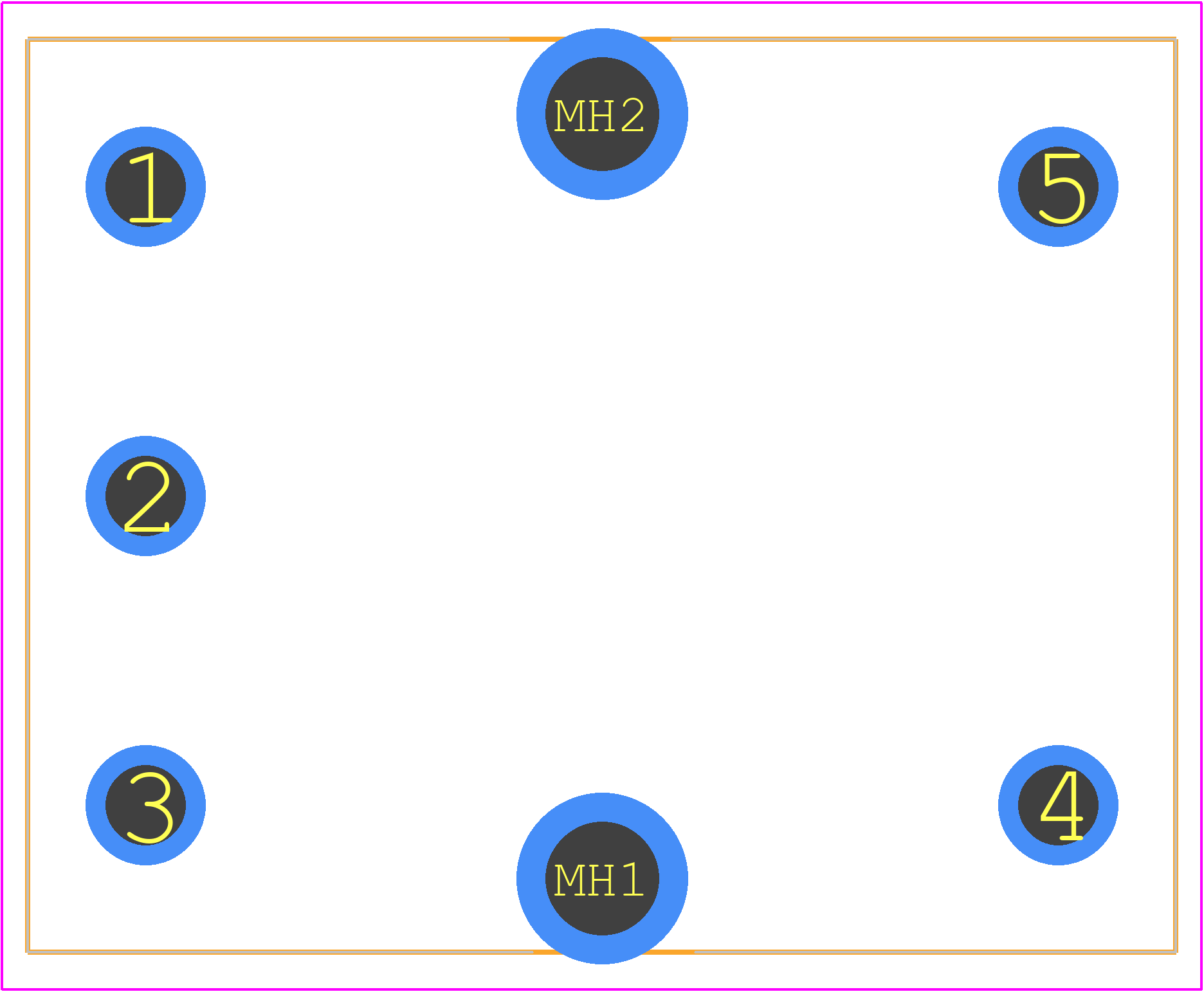

MFM1714B50M50C5M04 - VICOR PCB footprint - Other - Other - MFM1714B50M50C5M04-1
click to zoom
3D Models
MFM1714B50M50C5M04 - VICOR - 3D model - Other - MFM1714B50M50C5M04-1
click to zoom

MFM1714B50M50C5M04 Details

  • Manufacturer Part Number:

    MFM1714B50M50C5M04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6.79

  • Approvals:

    IEC

  • Filter Type:

    DATA LINE FILTER

  • Height:

    9.3 mm

  • Length:

    44.6 mm

  • Mounting Type:

    CHASSIS MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Material:

    PLASTIC/EPOXY

  • Rated Voltage:

    50 V

  • Screening Level:

    MIL-STD-810/202

  • Width:

    35.5 mm

MFM1714B50M50C5M04 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-vibration environments, Vicor recommends securing the module to the PCB using screws or adhesive, and using a vibration-dampening material such as silicone or epoxy to fill any gaps between the module and the PCB.
  • The maximum allowed capacitance for the output filter capacitor is 100uF. Exceeding this value may cause instability or oscillation in the module.
  • No, the input voltage range specified in the datasheet is the only recommended range for operation. Operating the module outside of this range may cause damage or affect its reliability.
  • To troubleshoot issues with the module's output voltage regulation, check the input voltage, output load, and temperature. Ensure that the input voltage is within the specified range, the output load is within the specified current rating, and the module is operating within the specified temperature range.
