Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MFR-12FTF52-120R - Yageo Group

Description: Metal Film Resistors - Through Hole 120 OHM 1/6W 1%

Download MFR-12FTF52-120R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MFR-12FTF52-120R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

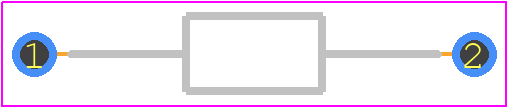

MFR-12FTF52-120R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MFR-12FTF52-120R
click to zoom
3D Models
MFR-12FTF52-120R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - MFR-12FTF52-120R
click to zoom

MFR-12FTF52-120R Details

  • Manufacturer Part Number:

    MFR-12FTF52-120R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    1.9 mm

  • Package Length:

    3.4 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Ammo Pack

  • Rated Power Dissipation (P):

    0.1667 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    120 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    200 V

MFR-12FTF52-120R Frequently Asked Questions (FAQs)

  • The operating temperature range of MFR-12FTF52-120R is -55°C to 125°C.
  • Yes, MFR-12FTF52-120R is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The power rating of MFR-12FTF52-120R is 120 ohms, with a power rating of 0.5 watts.
  • MFR-12FTF52-120R is a general-purpose resistor, not specifically designed for high-frequency applications. For high-frequency applications, it's recommended to use resistors with a higher frequency rating, such as those in the MFR-12FTF52-HF series.
  • While MFR-12FTF52-120R meets the basic requirements for automotive applications, it's not specifically qualified for automotive use. For automotive applications, it's recommended to use resistors that meet the AEC-Q200 standard, such as those in the MFR-12FTF52-A series.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFR-12FTF52-120R Overview

Use the download button to access the MFR-12FTF52-120R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFR-1, or try a keyword search, such as Metal Film Resistors

Suggested Parts

If you searched for MFR-12FTF52-120R, you might also be interested in these parts:
Part Number
M20-9980745
10118192-0001LF
RC0603FR-071KL
SIT2001BI-S2-33E-12.000000D
CL21A106KOQNNNE
T520B336M006ATE025
74HC139N
T520D477M2R5ATE007
22-23-2081

Parts related to MFR-12FTF52-120R

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MFR-12FTF52-120R Alternates

Showing results

Image Part Number Model
Part Image MFR-12FRF26-120R YAGEO Corporation

Fixed Resistor, Metal Film, 0.1667W, 120ohm, 200V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED
Part Image MFR-12FBF52-120R YAGEO Corporation

Fixed Resistor, Metal Film, 0.1666W, 120ohm, 200V, 1% +/-Tol, -100,100ppm/Cel,
Part Image MFR-12FRFM120R YAGEO Corporation

Fixed Resistor, Metal Film, 0.1667W, 120ohm, 200V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED
Part Image MFR-12FBF26-120R YAGEO Corporation

Fixed Resistor, Metal Film, 0.1666W, 120ohm, 200V, 1% +/-Tol, -100,100ppm/Cel,
Part Image MFN-12FTFMT120R YAGEO Corporation

Fixed Resistor, Metal Film, 0.1666W, 120ohm, 200V, 1% +/-Tol, -100,100ppm/Cel,
For a full list of alternate parts for MFR-12FTF52-120R, check out Findchips.com
