MFR-25FRF52-470R - Yageo Group

Description: Metal Film Resistors - Through Hole 470 OHM 1/4W 1%

Download MFR-25FRF52-470R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MFR-25FRF52-470R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

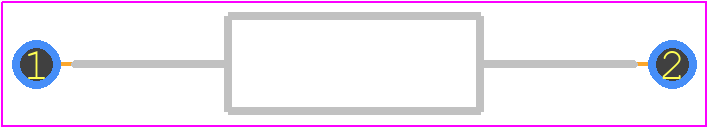

MFR-25FRF52-470R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MFR-25F..
click to zoom

MFR-25FRF52-470R Details

  • Manufacturer Part Number:

    MFR-25FRF52-470R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.4 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 12 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    470 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    250 V

MFR-25FRF52-470R Frequently Asked Questions (FAQs)

  • The recommended land pattern for MFR-25FRF52-470R is a rectangular pad with a size of 1.2mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
  • While MFR-25FRF52-470R is rated for operation up to 125°C, it's not recommended for use in high-temperature applications above 150°C. Exceeding the recommended temperature range may affect the component's reliability and lifespan.
  • Handle the MFR-25FRF52-470R with care during PCB assembly to prevent mechanical stress, bending, or twisting. Use anti-static wrist straps and mats to prevent electrostatic discharge (ESD) damage. Avoid touching the component's leads or body to prevent contamination and damage.
  • While MFR-25FRF52-470R is designed to operate in a variety of environments, it's not recommended for use in extremely humid or moist environments. Moisture can affect the component's reliability and lifespan. If you must use it in a humid environment, ensure proper sealing and conformal coating to prevent moisture ingress.
  • The recommended soldering profile for MFR-25FRF52-470R is a peak temperature of 260°C, with a dwell time of 10-30 seconds. Ensure that the soldering process is within the recommended temperature range to prevent damage to the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFR-25FRF52-470R Overview

Use the download button to access the MFR-25FRF52-470R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MFR-2, or try a keyword search, such as Metal Film Resistors
