MFR50SFTE52-220R - Yageo Group

Description: YAGEO - MFR50SFTE52-220R - Through Hole Resistor, 220 ohm, MFR Series, 500 mW, ± 1%, Axial Leaded, 300 V

Download MFR50SFTE52-220R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MFR50SFTE52-220R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

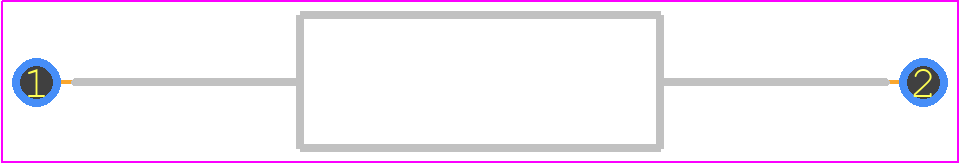

MFR50SFTE52-220R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MFR-50FRF52-100R
click to zoom
3D Models
MFR50SFTE52-220R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - MFR-50FRF52-100R
click to zoom

MFR50SFTE52-220R Details

  • Manufacturer Part Number:

    MFR50SFTE52-220R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.4 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Ammo Pack

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    220 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    300 V

MFR50SFTE52-220R Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for MFR50SFTE52-220R is 260°C for 10-30 seconds, with a peak temperature of 240°C. However, it's always best to consult the YAGEO Corporation's soldering guidelines for the most up-to-date information.
  • Yes, MFR50SFTE52-220R is compatible with lead-free soldering processes. YAGEO Corporation's products are designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
  • The moisture sensitivity level (MSL) of MFR50SFTE52-220R is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring special handling or storage procedures.
  • While MFR50SFTE52-220R is a general-purpose resistor, it's not specifically designed for high-frequency applications. For high-frequency applications, YAGEO Corporation recommends using their high-frequency resistor series, such as the MFR25 series.
  • The typical tolerance of MFR50SFTE52-220R is ±1%. However, it's essential to check the specific tolerance of the component you receive, as it may vary depending on the production batch and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFR50SFTE52-220R Overview

Use the download button to access the MFR50SFTE52-220R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFR50, or try a keyword search, such as Metal Film Resistors
