MFR50SFTE52-240R - Yageo Group

Description: Metal Film Resistors - Through Hole 240 OHM 1/2W 1%

Download MFR50SFTE52-240R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MFR50SFTE52-240R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

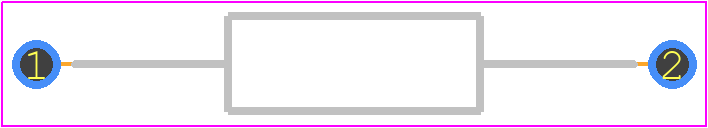

MFR50SFTE52-240R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MFR50S-1
click to zoom
3D Models
MFR50SFTE52-240R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - MFR50S-1
click to zoom

MFR50SFTE52-240R Details

  • Manufacturer Part Number:

    MFR50SFTE52-240R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.4 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Ammo Pack

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    240 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    300 V

MFR50SFTE52-240R Frequently Asked Questions (FAQs)

  • The recommended land pattern for MFR50SFTE52-240R is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • Yes, MFR50SFTE52-240R is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and premature failure.
  • Yes, MFR50SFTE52-240R is compatible with lead-free soldering processes and meets the requirements of the RoHS directive. The component is designed to withstand the higher temperatures associated with lead-free soldering.
  • The MSL of MFR50SFTE52-240R is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
  • While MFR50SFTE52-240R is designed to operate in a variety of environments, it's not recommended for use in applications with high humidity or moisture. The component may be susceptible to moisture ingress, which can affect its performance and reliability.
