MFR50SFTE52-28K - Yageo Group

Description: Metal Film Resistors - Through Hole 28K Ohm 1/2 Watt 1% Miniature Version

Download MFR50SFTE52-28K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MFR50SFTE52-28K - Yageo Group - PCB symbol
click to zoom
PCB Footprints

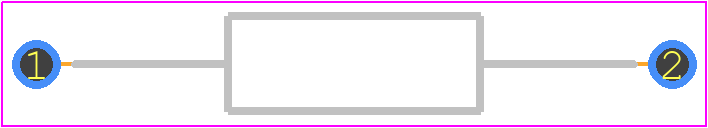

MFR50SFTE52-28K - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - 6.3mmx2.4mm
click to zoom

MFR50SFTE52-28K Details

  • Manufacturer Part Number:

    MFR50SFTE52-28K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.4 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    28000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    300 V
