MFRC50001T/0FE,112 - NXP

Description: NFC/RFID Tags & Transponders MIFARE READER

Download MFRC50001T/0FE,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

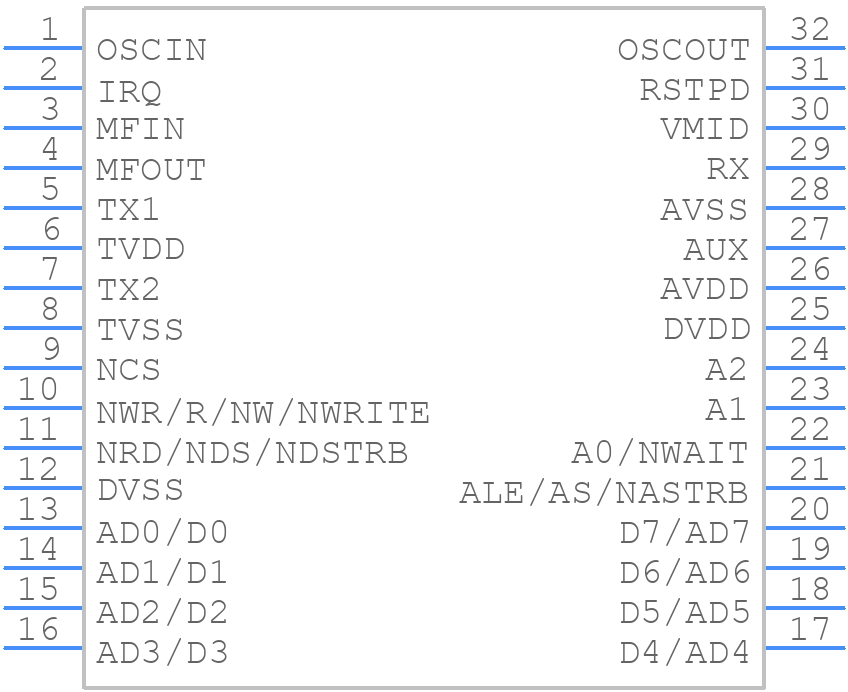

MFRC50001T/0FE,112 - NXP - PCB symbol
click to zoom
PCB Footprints
MFRC50001T/0FE,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO32: plastic small outline package; 32 leads; body width 7.5 mm
click to zoom
3D Models
MFRC50001T/0FE,112 - NXP - 3D model - Small Outline Packages - SO32: plastic small outline package; 32 leads; body width 7.5 mm
click to zoom

MFRC50001T/0FE,112 Details

  • Manufacturer Part Number:

    MFRC50001T/0FE,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    7.5 MM, PLASTIC, MO-119, SOT-287-1, SOP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT287-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    20.5 mm

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

MFRC50001T/0FE,112 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MFRC50001T/0FE,112 is -40°C to 85°C.
  • The MFRC50001T/0FE,112 can be configured for different frequency bands by setting the appropriate values for the PLL registers. Refer to the application note AN10927 for more information.
  • The maximum current consumption of the MFRC50001T/0FE,112 is 100 mA, but this can vary depending on the operating mode and frequency.
  • The MFRC50001T/0FE,112 supports various anti-collision algorithms, including the ISO/IEC 14443-3 standard. Refer to the application note AN10927 for more information on implementing anti-collision algorithms.
  • The maximum distance for reliable communication with the MFRC50001T/0FE,112 depends on various factors, including the antenna design, operating frequency, and environment. In general, the maximum distance is around 10 cm, but this can be increased with optimized antenna design and tuning.
