The recommended land pattern for MFS1/4CC3000F is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
To handle thermal considerations for MFS1/4CC3000F, ensure that the device is mounted on a thermally conductive substrate, and provide adequate thermal vias to dissipate heat. The device's thermal resistance (Rth) is 35°C/W, so proper thermal design is crucial to prevent overheating.
The maximum operating temperature range for MFS1/4CC3000F is -55°C to +150°C. However, the device's electrical characteristics may degrade above 125°C, so it's recommended to operate within the -40°C to +125°C range for optimal performance.
Yes, MFS1/4CC3000F is suitable for high-frequency applications up to 100 MHz. However, the device's impedance may vary with frequency, so it's essential to consider the frequency-dependent characteristics when designing the circuit.
To ensure the reliability of MFS1/4CC3000F in a humid environment, apply a conformal coating to the device, and follow proper storage and handling procedures to prevent moisture absorption. The device is rated for 85°C/85% RH conditions, but additional precautions may be necessary in extremely humid environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MFS1/4CC3000F Overview

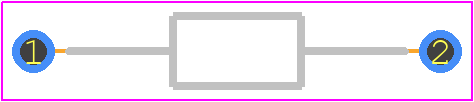

Use the download button to access the MFS1/4CC3000F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFS1/,
or try a keyword search, such as Metal Film Resistors
