MFS2613AMDA3AD - NXP

Description: Power Management Specialized - PMIC Safety System Basis Chip with Low Power for ASIL D, LQFP-48 tray

Download MFS2613AMDA3AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

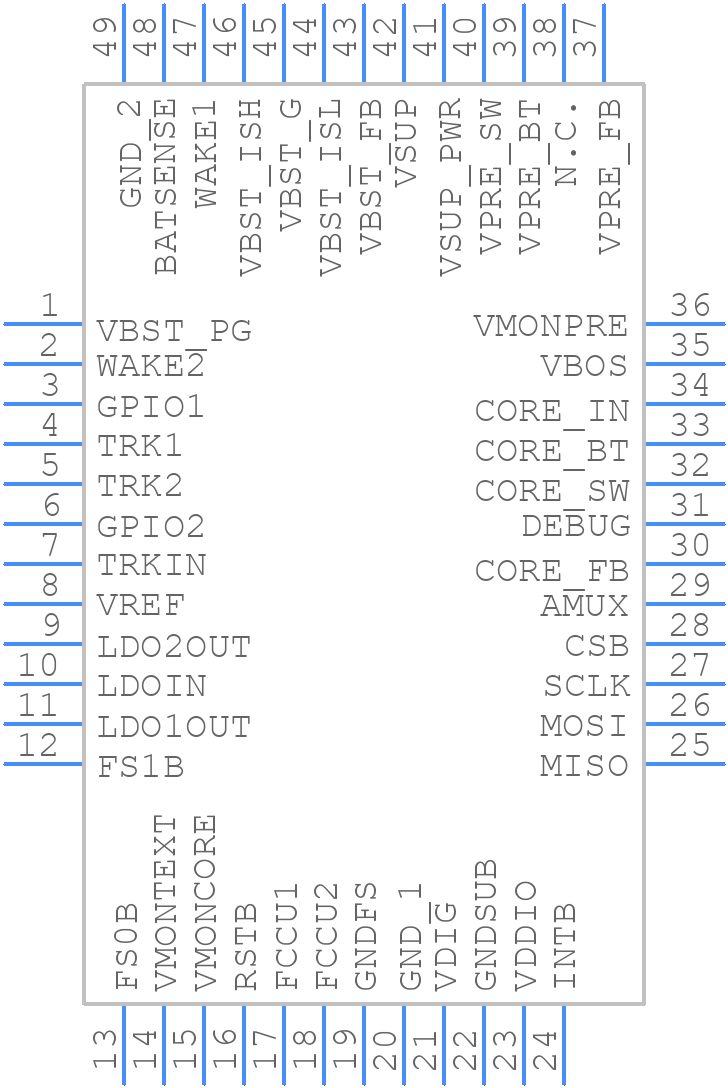

MFS2613AMDA3AD - NXP - PCB symbol
click to zoom
PCB Footprints
MFS2613AMDA3AD - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-6
click to zoom
3D Models
MFS2613AMDA3AD - NXP - 3D model - Quad Flat Packages - SOT1571-6
click to zoom

MFS2613AMDA3AD Details

  • Manufacturer Part Number:

    MFS2613AMDA3AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MFS2613AMDA3AD Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MFS2613AMDA3AD has a low-power mode that can be enabled by setting the PMODE pin to a logic low level. Additionally, the device can be configured to enter a low-power state by using the SPI interface to set the appropriate registers. Refer to the datasheet and application notes for detailed instructions.
  • The MFS2613AMDA3AD is rated for operation from -40°C to +125°C, but the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
  • Yes, the MFS2613AMDA3AD is a standard SPI-based device that can be interfaced with most microcontrollers. However, NXP provides optimized software libraries and example code for their microcontrollers, which may not be directly compatible with non-NXP microcontrollers. Additional development and testing may be required to ensure compatibility.
  • NXP provides a range of tools and resources, including application notes, user manuals, and technical support forums, to help troubleshoot issues with the MFS2613AMDA3AD. Additionally, engineers can use standard debugging techniques, such as logic analyzers and oscilloscopes, to identify and resolve issues.
