The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
The MGA-61563-TR2G has a typical MTBF of 100 million hours at 40°C, calculated according to Telcordia SR-332. The device is also qualified to automotive and industrial reliability standards, ensuring high reliability in harsh environments.
The MGA-61563-TR2G is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade above 85°C. It's essential to follow the recommended thermal management guidelines and derate the device's performance accordingly.
Use a high-impedance probe or a 50-ohm terminated cable to measure the device's output. Ensure the test setup is properly calibrated, and use a low-noise power supply to minimize measurement errors. Follow the recommended test procedures outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGA-61563-TR2G Overview

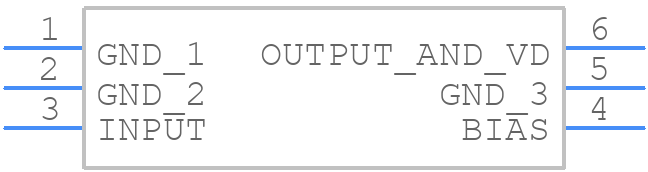

Use the download button to access the MGA-61563-TR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MGA-6,
or try a keyword search, such as RF/Microwave Amplifiers
