MGC3130-I/MQ - Microchip

Description: MGC3130-I/MQ, GestIC Touch Screen Controller I2C, SPI, 28-Pin QFN

Download MGC3130-I/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

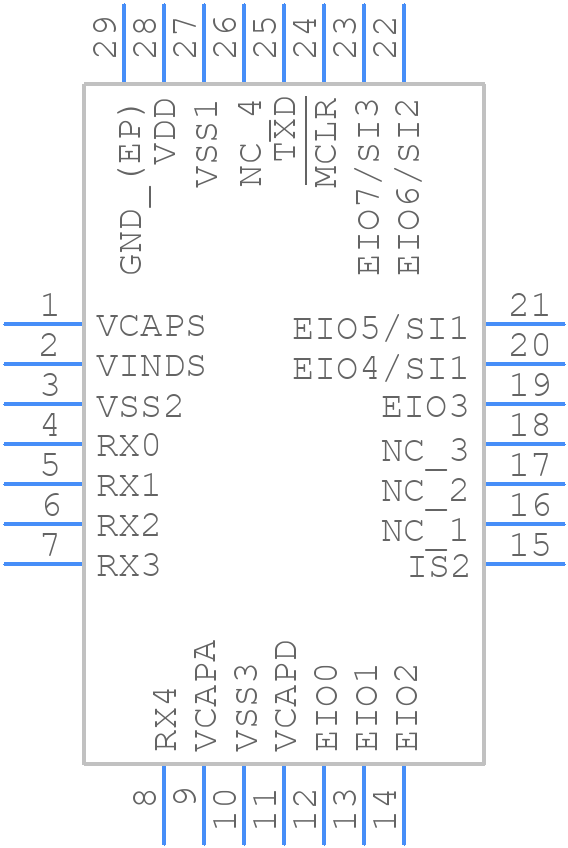

MGC3130-I/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MGC3130-I/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom
3D Models
MGC3130-I/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom

MGC3130-I/MQ Details

  • Manufacturer Part Number:

    MGC3130-I/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MGC3130-I/MQ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the MCU close together, and use a shielded cable for the I2C bus.
  • Calibration involves applying a known magnetic field and adjusting the internal registers to achieve optimal accuracy. Refer to the application note AN2015 for detailed calibration procedures.
  • The MGC3130 is rated for operation from -40°C to 125°C, but the accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications.
  • Yes, the MGC3130 can operate from a 1.71V to 3.6V supply voltage. However, the device's performance and accuracy may vary depending on the supply voltage.
  • Use a low-pass filter or a ferrite bead to reduce noise on the power supply lines. Also, ensure good PCB layout practices, such as separating analog and digital signals, and using a solid ground plane.
