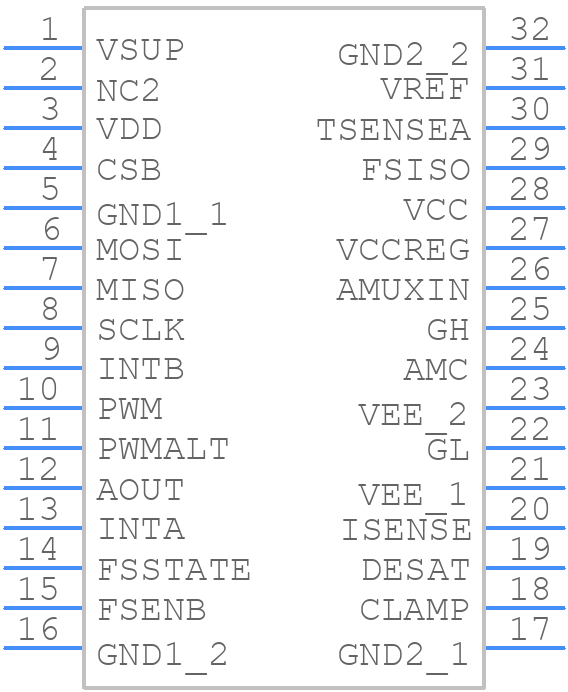

MGD3160AM535EK - NXP

MGD3160AM535EK Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  NXP provides a recommended PCB layout and thermal management guide in their application note AN11542, which includes guidelines for thermal pad connection, heat sink design, and PCB layer stack-up.
• How do I optimize the gate driver circuit for minimum power loss and maximum efficiency?
  Optimizing the gate driver circuit involves selecting the right gate resistor value, ensuring proper PCB layout, and using a suitable gate drive voltage. NXP's application note AN11543 provides detailed guidelines for gate driver optimization.
• What are the recommended test and measurement equipment for characterizing the MGD3160AM535EK?
  NXP recommends using a high-frequency oscilloscope, a current probe, and a thermal imaging camera to characterize the device. Additionally, a double-pulse tester can be used to evaluate the device's switching performance.
• How do I ensure electromagnetic compatibility (EMC) and electromagnetic interference (EMI) compliance in my design?
  To ensure EMC and EMI compliance, follow NXP's guidelines for PCB layout, shielding, and filtering. Additionally, consider using a common-mode choke and a shielded enclosure to minimize emissions.
• What are the reliability and qualification tests that NXP performs on the MGD3160AM535EK?
  NXP performs a range of reliability and qualification tests, including high-temperature operating life (HTOL), temperature humidity bias (THB), and electrostatic discharge (ESD) testing, to ensure the device meets industry standards for reliability and robustness.
