GAIA Converter Inc recommends a 4-layer PCB with a dedicated ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the power planes. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
To ensure EMC, GAIA Converter Inc recommends following proper PCB layout guidelines, using a metal enclosure, and adding EMI filters on the input and output lines. Additionally, the device should be placed at least 10 mm away from any other components or metal objects.
The MGDDI-06-R-E can tolerate up to ±10% input voltage deviation from the nominal input voltage without affecting its performance or reliability.
GAIA Converter Inc recommends checking the input voltage, output load, and ambient temperature. Ensure that the device is properly cooled and that the output is not overloaded. If issues persist, contact GAIA Converter Inc's technical support for further assistance.
Yes, the MGDDI-06-R-E is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, GAIA Converter Inc recommends following the recommended soldering profile to ensure reliable assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGDDI-06-R-E Overview

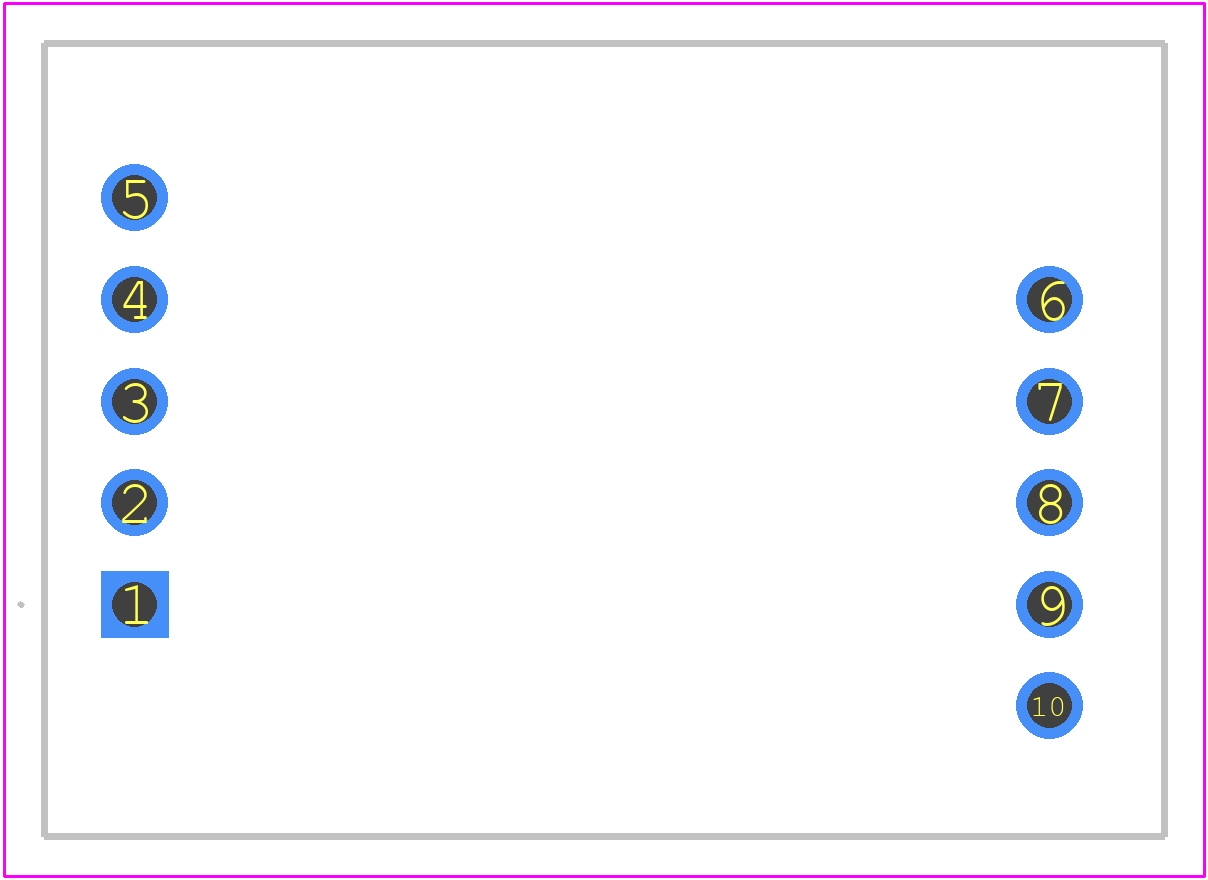

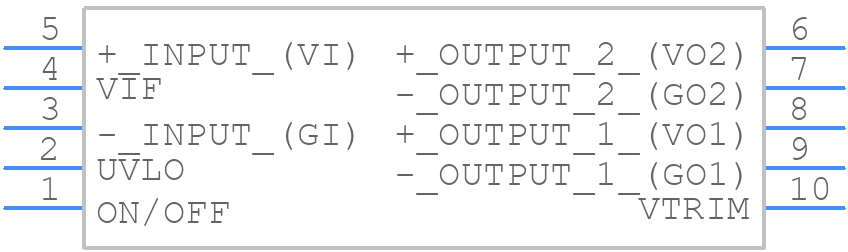

Use the download button to access the MGDDI-06-R-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGDDI,
or try a keyword search, such as Power Supply Modules
