Vishay provides a recommended PCB layout and land pattern in their application note AN42171, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and to prevent thermal runaway.
To calculate the power dissipation, you need to consider the voltage drop across the device, the current flowing through it, and the thermal resistance. You can use the equations provided in the datasheet, along with the thermal resistance values, to estimate the power dissipation. Additionally, you can use online calculators or simulation tools to simplify the process.
While the datasheet specifies the maximum repetitive peak voltage, it's essential to consider the voltage stress during transient events, such as switching and surges. As a general rule, it's recommended to derate the voltage by 10-20% to ensure the device can withstand voltage stress. Consult with Vishay's application engineers or refer to their application notes for more information.
The MGDT100100-SM is designed for high-frequency applications, but its performance may degrade above 100 kHz. To ensure optimal performance, it's essential to consider the device's parasitic inductance, capacitance, and resistance. Consult with Vishay's application engineers or refer to their application notes for more information on high-frequency design considerations.
To ensure reliability and longevity, follow proper design and assembly guidelines, such as using a robust PCB design, selecting suitable components, and implementing adequate thermal management. Additionally, consider implementing overvoltage, overcurrent, and overtemperature protection mechanisms to prevent device failure. Consult with Vishay's application engineers or refer to their reliability and quality documents for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGDT100100-SM Overview

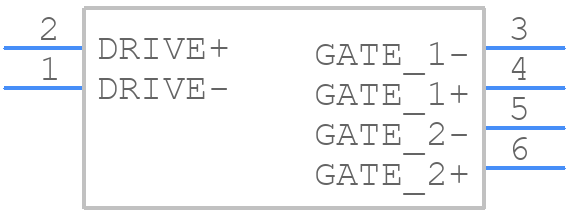

Use the download button to access the MGDT100100-SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGDT1,
or try a keyword search, such as Pulse/Datacom Transformers
