MGDT100100LF - Vishay

Description: Pulse Transformers PLANAR 1:1:1 LF High Side / 1200V

Download MGDT100100LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

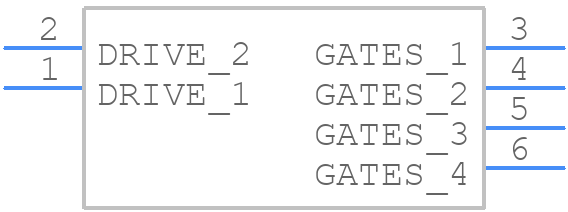

Symbol
MGDT100100LF - Vishay - PCB symbol
click to zoom

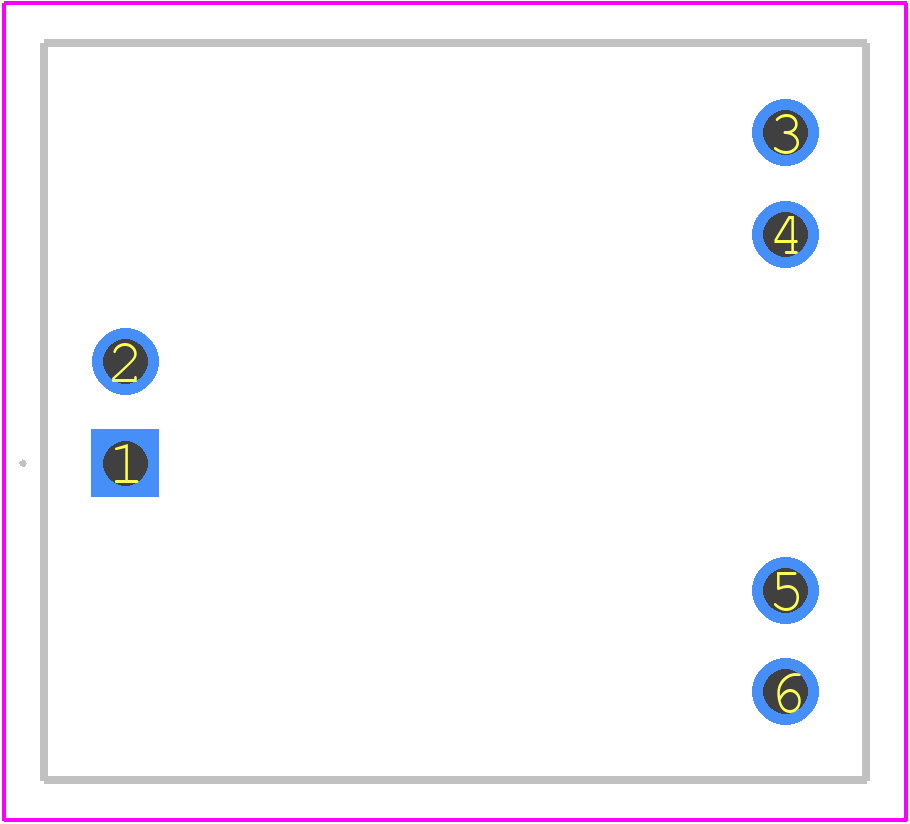

PCB Footprints
MGDT100100LF - Vishay PCB footprint - Other - Other - MGDT100100LF-2
click to zoom
3D Models
MGDT100100LF - Vishay - 3D model - Other - MGDT100100LF-2
click to zoom

MGDT100100LF Details

  • Manufacturer Part Number:

    MGDT100100LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.8

  • Application:

    GATE DRIVE

  • Height:

    11.43 mm

  • Length:

    20.57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Primary Inductance:

    240 µH

  • Surface Mount:

    NO

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1:1

  • Width:

    18.42 mm

MGDT100100LF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the MGDT100100LF is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • Yes, the MGDT100100LF is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at temperatures above 125°C.
  • To prevent damage, handle the MGDT100100LF by the body, avoiding touching the leads or the glass passivation. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
  • The recommended soldering profile for the MGDT100100LF is a peak temperature of 260°C, with a dwell time of 10-30 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
  • Yes, the MGDT100100LF is designed to operate in humid environments, but it's recommended to follow proper packaging and handling procedures to prevent moisture ingress. The device is rated for operation up to 60% relative humidity at 40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGDT100100LF Overview

Use the download button to access the MGDT100100LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGDT1, or try a keyword search, such as Pulse/Datacom Transformers
