Part Image

MGFW102412 - Cosel

Description: Cosel MGF 10.08W Isolated DC-DC Converter PCB Mount, Voltage in 9 → 36 V dc, Voltage out ±12V dc

Download MGFW102412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

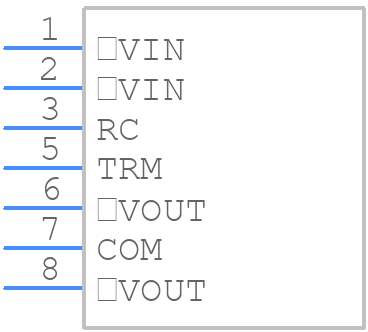

Symbol
MGFW102412 - Cosel - PCB symbol
click to zoom
PCB Footprints
MGFW102412 - Cosel PCB footprint - Other - Other - MGFW102412-1
click to zoom
3D Models
MGFW102412 - Cosel - 3D model - Other - MGFW102412-1
click to zoom

MGFW102412 Details

  • Manufacturer Part Number:

    MGFW102412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    ADDITIONAL -12V OUTPUT AVAILABLE, SINGLE 24V OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, C-UL, EN

  • Efficiency (Main Output):

    87%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    22 mm

  • Line Regulation-Max:

    0.0072%

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.42 A

  • Output Voltage-Max:

    12.36 V

  • Output Voltage-Min:

    11.64 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    OVER CURRENT

  • Ripple Voltage (Main Out):

    0.17675 Vrms

  • Seated Height-Max:

    12.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    10.08 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.03 s

  • Width:

    9.5 mm

MGFW102412 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The MGFW102412 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure that your system design meets the required safety certifications by following the guidelines in the datasheet and consulting with Cosel's technical support team.
  • The maximum allowable capacitance on the output of the MGFW102412 is 2200uF. Exceeding this value may affect the stability of the converter and lead to oscillations or reduced performance.
  • Yes, the MGFW102412 can be used in a redundant or parallel configuration to achieve higher power ratings or improve system reliability. However, it is essential to follow Cosel's guidelines for parallel operation and ensure that the system design meets the required safety certifications.
  • Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and system requirements. A slow-blow fuse type is recommended to ensure that the converter can handle inrush currents during startup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGFW102412 Overview

Use the download button to access the MGFW102412 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGFW1, or try a keyword search, such as Power Supply Modules
