MGW301212 footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

PCB Footprints

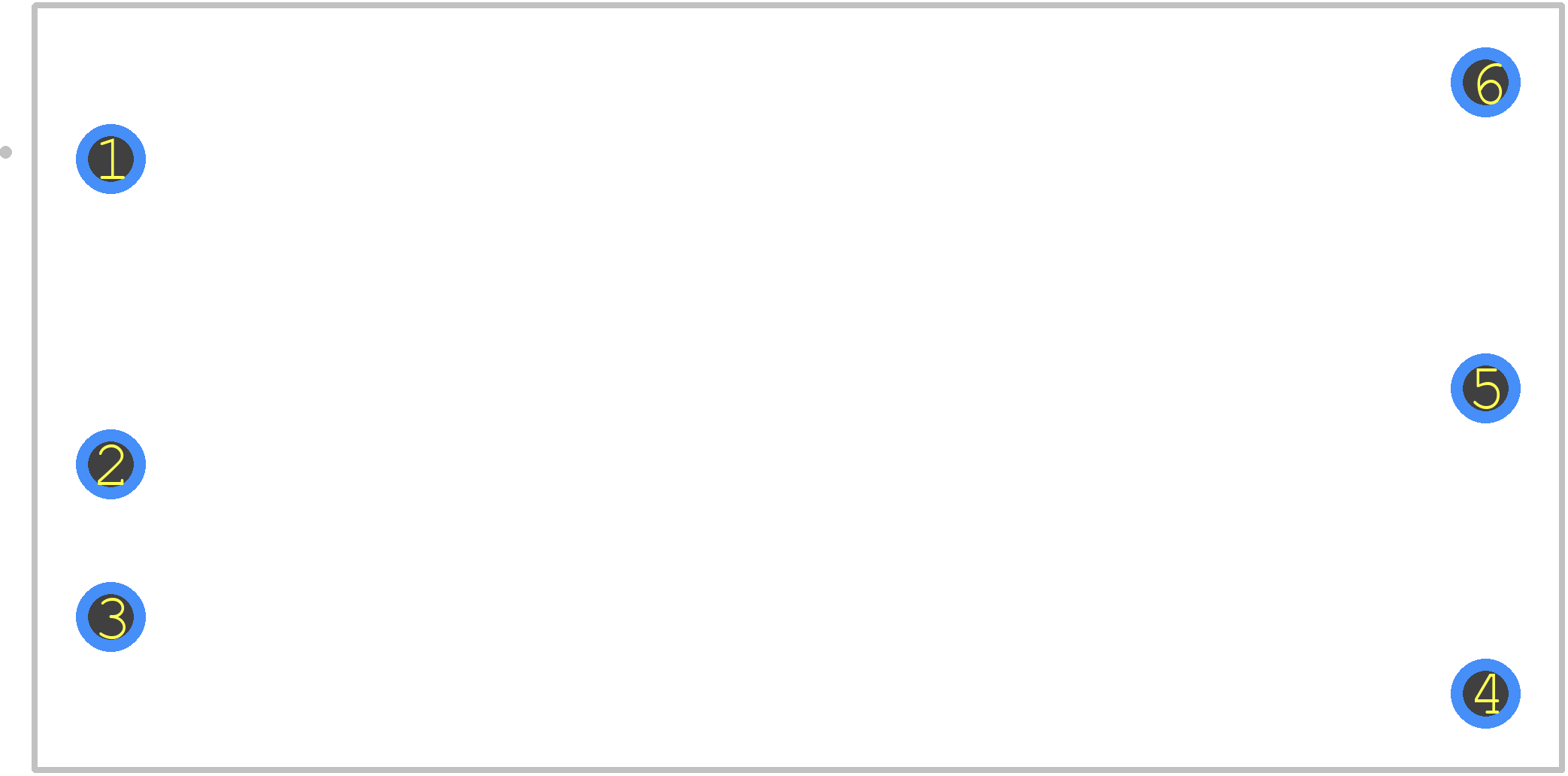

MGW301212 - Cosel PCB footprint - Other - Other - MGW30

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MGW301212
Part Number MGW301212
Manufacturer Cosel
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MGW30
Released Date Oct 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MGW301212 Details

Manufacturer Part Number:
MGW301212
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
6
Additional Feature:
ADDITIONAL -12V OUTPUT AVAILABLE, SINGLE 24V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Output Voltage-Max:
12.492 V
Output Voltage-Min:
11.765 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

MGW301212 Frequently Asked Questions (FAQs)

Cosel recommends a multi-layer PCB with a solid ground plane and a thermal relief pattern under the module. Ensure good airflow and consider adding a heat sink or thermal interface material to maintain a junction temperature below 100°C.
Follow proper PCB design and layout guidelines, use a metal enclosure, and ensure proper filtering and shielding. Cosel recommends using a common-mode choke and X-capacitors to reduce EMI emissions.
The derating curve is available upon request from Cosel. Generally, the output power derates by 1.5% per °C above 50°C. Ensure proper thermal management to maintain maximum output power.
Yes, the MGW301212 can be used in redundant or N+1 configurations. However, consult with Cosel's application engineers to ensure proper design and implementation to avoid single-point failures.
Cosel recommends using a π-filter (L-C-L) on the input and a simple RC filter on the output. The specific component values depend on the application and should be determined in consultation with Cosel's application engineers.

Trust Checks

Expert Contribution

System Verified

Community Approved

MGW301212 Overview

Use the download button to access the MGW301212 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MGW30, or try a keyword search, such as Power Supply Modules
