ADDITIONAL -12V OUTPUT AVAILABLE, SINGLE 24V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Output Voltage-Max:
12.492 V
Output Voltage-Min:
11.765 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
25.4 mm
MGW302412 Frequently Asked Questions (FAQs)
Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the module and consider adding a heat sink or thermal interface material for high-power applications.
Follow proper PCB design and layout guidelines, use a metal enclosure, and ensure proper grounding and shielding. Additionally, consider adding EMI filters or common-mode chokes to the input and output lines to minimize emissions and susceptibility.
Derating curves are available upon request from Cosel USA Inc. Apply the derating curves to ensure the module operates within safe operating conditions, taking into account factors like ambient temperature, input voltage, and output current.
Yes, the MGW302412 can be used in redundant or parallel configurations. However, it's essential to follow Cosel's guidelines for synchronization, current sharing, and fault tolerance to ensure reliable operation and minimize the risk of single-point failures.
Cosel recommends using a pi-filter (L-C-L) configuration on the input and output lines to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards. The specific component values will depend on the application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGW302412 Overview

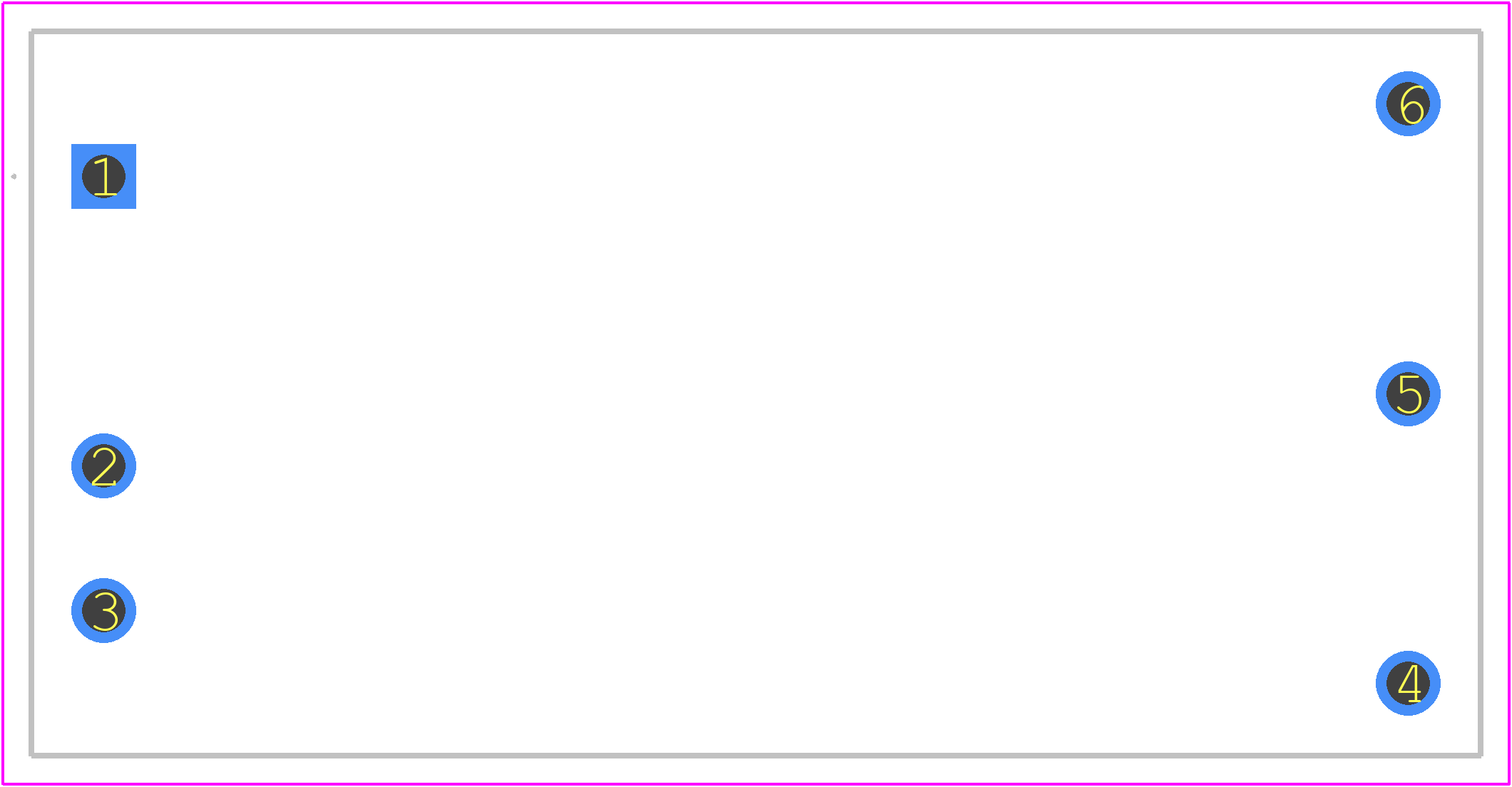

Use the download button to access the MGW302412 schematic symbol, PCB footprint, and 3D model.
