Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
To ensure reliable start-up and shutdown, Cosel recommends a soft-start circuit to limit the inrush current and a shutdown circuit to discharge the output capacitors. Additionally, the input voltage should be ramped up and down slowly to prevent voltage stress on the module.
The maximum allowed capacitance on the output of the MGW60512 is 2200uF. Exceeding this value may cause instability or oscillation in the module. It's essential to ensure that the total output capacitance, including any external capacitors, does not exceed this limit.
Yes, the MGW60512 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Cosel recommends following the IPC-9592 standard for vibration testing.
Cosel provides a troubleshooting guide in the application note AN-101, which covers common issues and their solutions. Additionally, the module's protection features can be monitored using the status pins, which provide information on the module's operating state.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGW60512 Overview

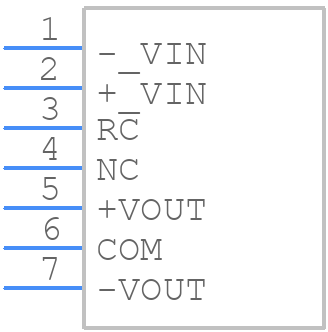

Use the download button to access the MGW60512 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGW60,
or try a keyword search, such as Power Supply Modules
