MHDD15-F-T-B-S - MH CONNECTORS

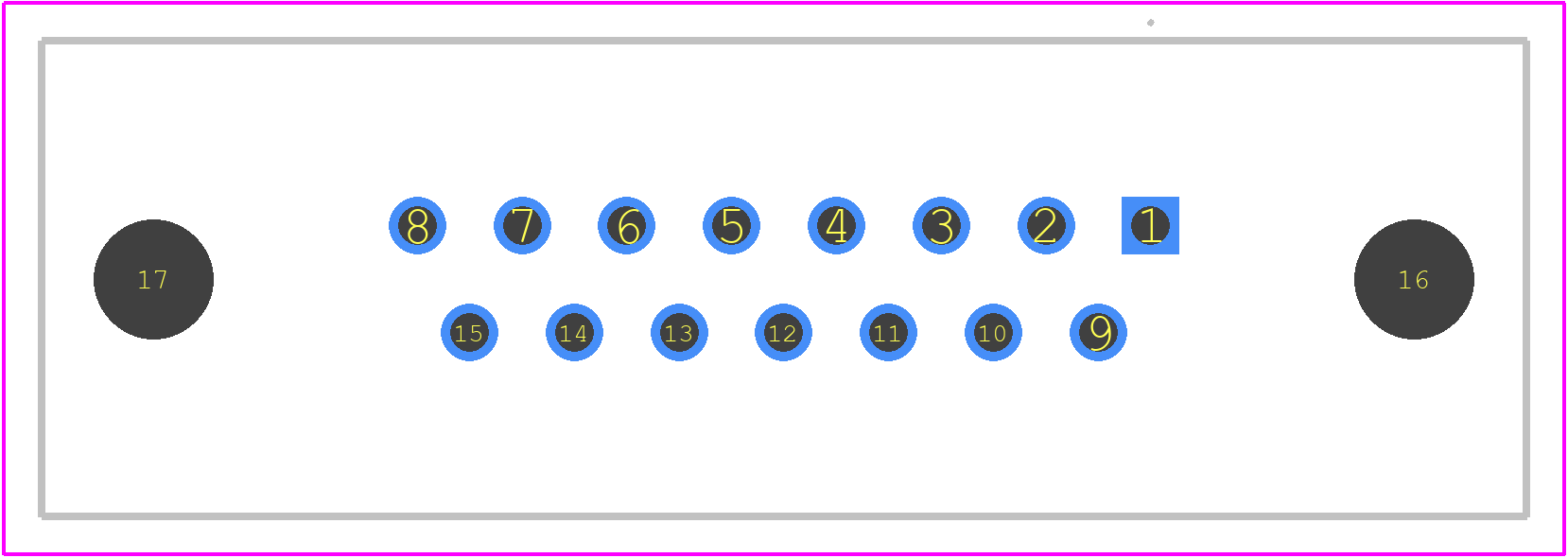

MHDD15-F-T-B-S Details

• Manufacturer Part Number:

  MHDD15-F-T-B-S

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  MH Connectors

• Board Mounting Option:

  HOLE 0.125

• Body Breadth:

  0.494 inch

• Body Length:

  1.545 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Design:

  STAMPED

• Contact Finish Termination:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  50 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  707 VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  3.334 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.12

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Plating Thickness:

  100u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  2/A

• Terminal Length:

  0.197 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.206 N
