MI-253-IW - VICOR

Description: DC DC CONVERTER 24V 100W

Download MI-253-IW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

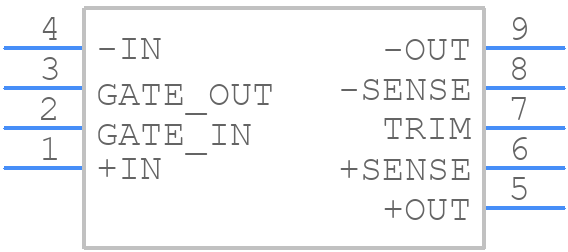

Symbol
MI-253-IW - VICOR - PCB symbol
click to zoom

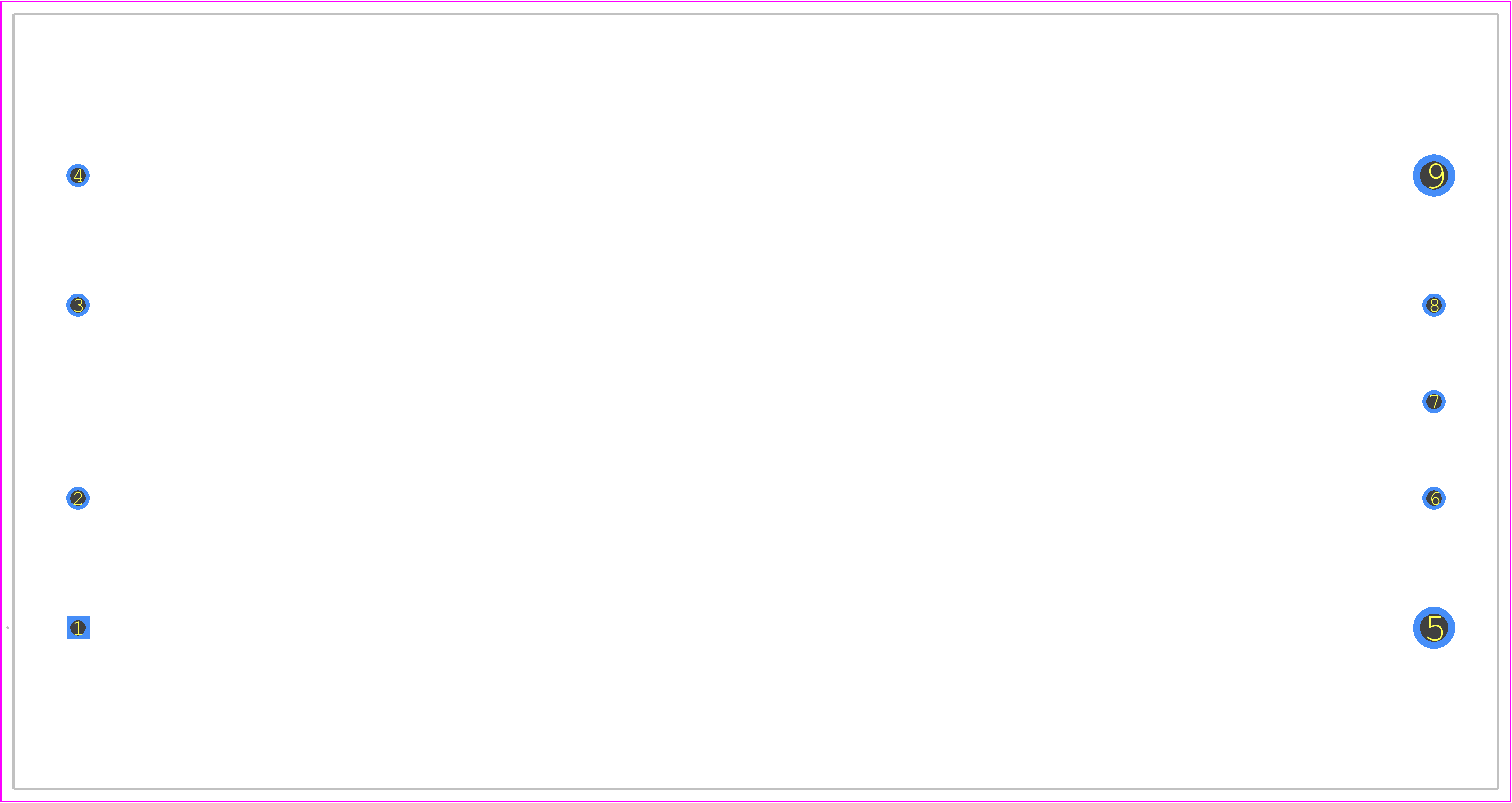

PCB Footprints
MI-253-IW - VICOR PCB footprint - Other - Other - MI-253-IW-2
click to zoom
3D Models
MI-253-IW - VICOR - 3D model - Other - MI-253-IW-2
click to zoom

MI-253-IW Details

  • Manufacturer Part Number:

    MI-253-IW

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFM,

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    210 V

  • Input Voltage-Min:

    100 V

  • Input Voltage-Nom:

    155 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    116.6 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    12 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Protections:

    THERMAL; CURRENT; OUTPUT OVER VOLTAGE

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.05304 Vrms

  • Seated Height-Max:

    13.46 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    60.7 mm

MI-253-IW Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's essential to follow these guidelines to ensure proper heat dissipation and minimize thermal resistance.
  • Vicor recommends using low-ESR capacitors with a voltage rating that meets or exceeds the maximum input voltage. The output capacitor selection depends on the output voltage and current requirements. Vicor provides guidance on capacitor selection in their application notes.
  • The maximum allowable ripple current for the input and output capacitors depends on the specific capacitor type and rating. Vicor recommends consulting the capacitor manufacturer's datasheet and following their guidelines for ripple current ratings.
  • Vicor provides guidance on EMC and EMI compliance in their application notes and whitepapers. It's essential to follow proper PCB layout, shielding, and filtering techniques to ensure compliance with relevant standards.
  • Vicor recommends a controlled startup and shutdown sequence to prevent damage to the device and ensure reliable operation. The recommended sequence is typically outlined in the application notes or datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MI-253-IW Overview

Use the download button to access the MI-253-IW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MI-25, or try a keyword search, such as Other Signal Circuits
