MI-A22-IU - VICOR

Description: Power Line Filters 28Vin 60Vout 250W Attenuator Module

Download MI-A22-IU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

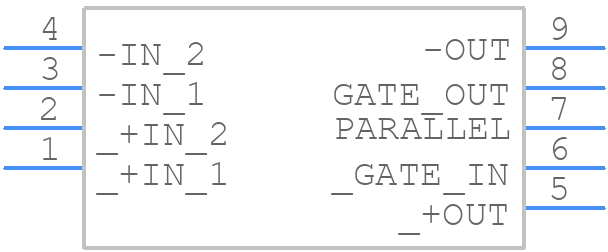

MI-A22-IU - VICOR - PCB symbol
click to zoom
PCB Footprints

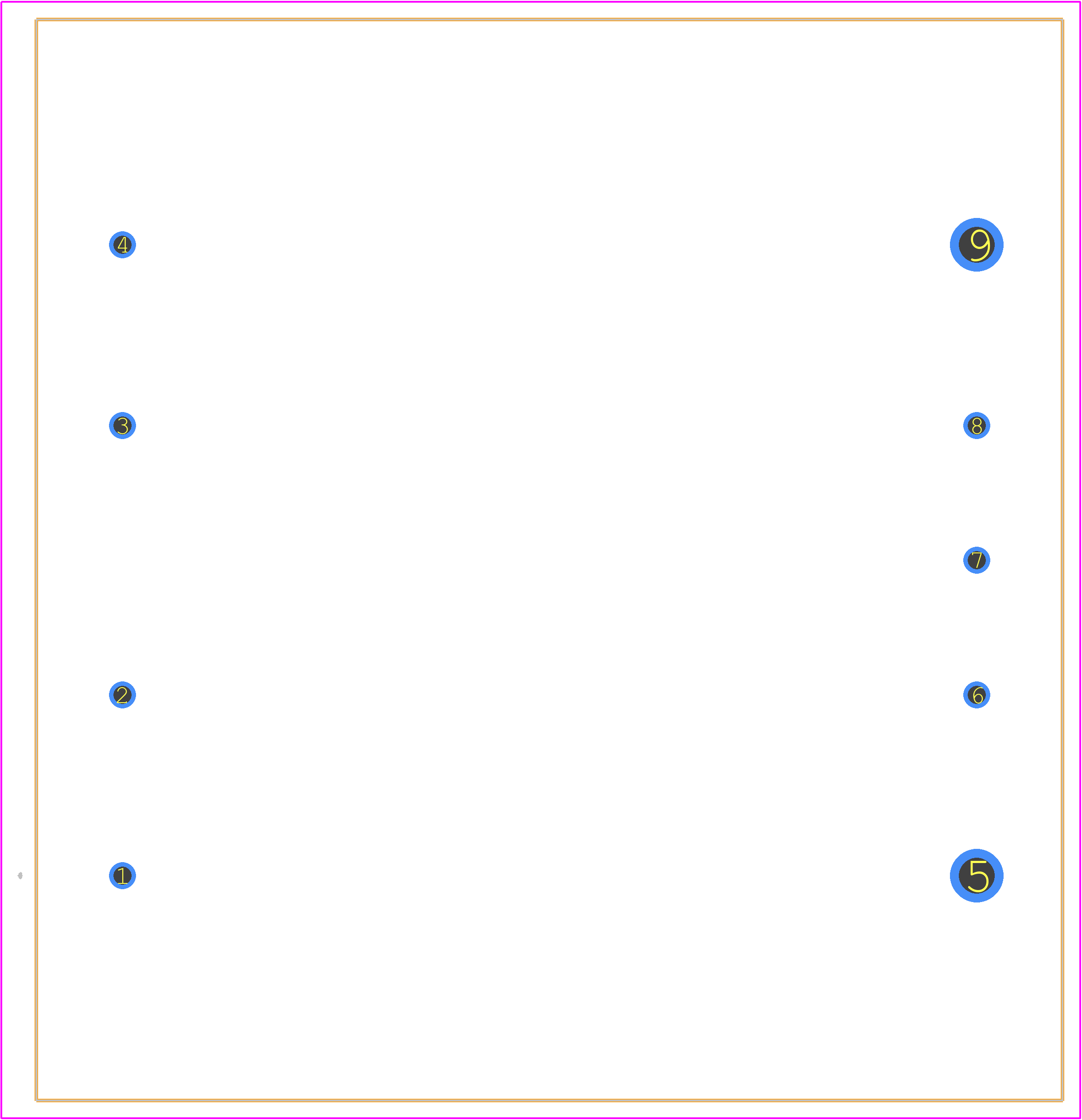

MI-A22-IU - VICOR PCB footprint - Other - Other - MI-A22-IU-2
click to zoom
3D Models
MI-A22-IU - VICOR - 3D model - Other - MI-A22-IU-2
click to zoom

MI-A22-IU Details

  • Manufacturer Part Number:

    MI-A22-IU

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.40.60.12

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.74

  • Additional Feature:

    MIL-STD-1275A/B/D;MIL-STD-704A; MIL-STD-810C/D; MIL-HDBK-217F

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    12.7 mm

  • Length:

    61 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Voltage:

    50 V

  • Screening Level:

    MIL-STD-461C/D/E/F

MI-A22-IU Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MI-A22-IU is -40°C to +100°C, with a derated power output above 70°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring good thermal interface material (TIM) between the module and the heat sink.
  • The recommended input capacitance for the MI-A22-IU is 10uF to 22uF, with a voltage rating of at least 50V.
  • Yes, the MI-A22-IU can be used in a redundant configuration to achieve high availability and reliability in critical applications.
  • The typical efficiency of the MI-A22-IU is around 92% to 95%, depending on the input voltage and output load.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MI-A22-IU Overview

Use the download button to access the MI-A22-IU schematic symbol, PCB footprint, and 3D model.
