MI21-50PD-SF-EJL(71) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

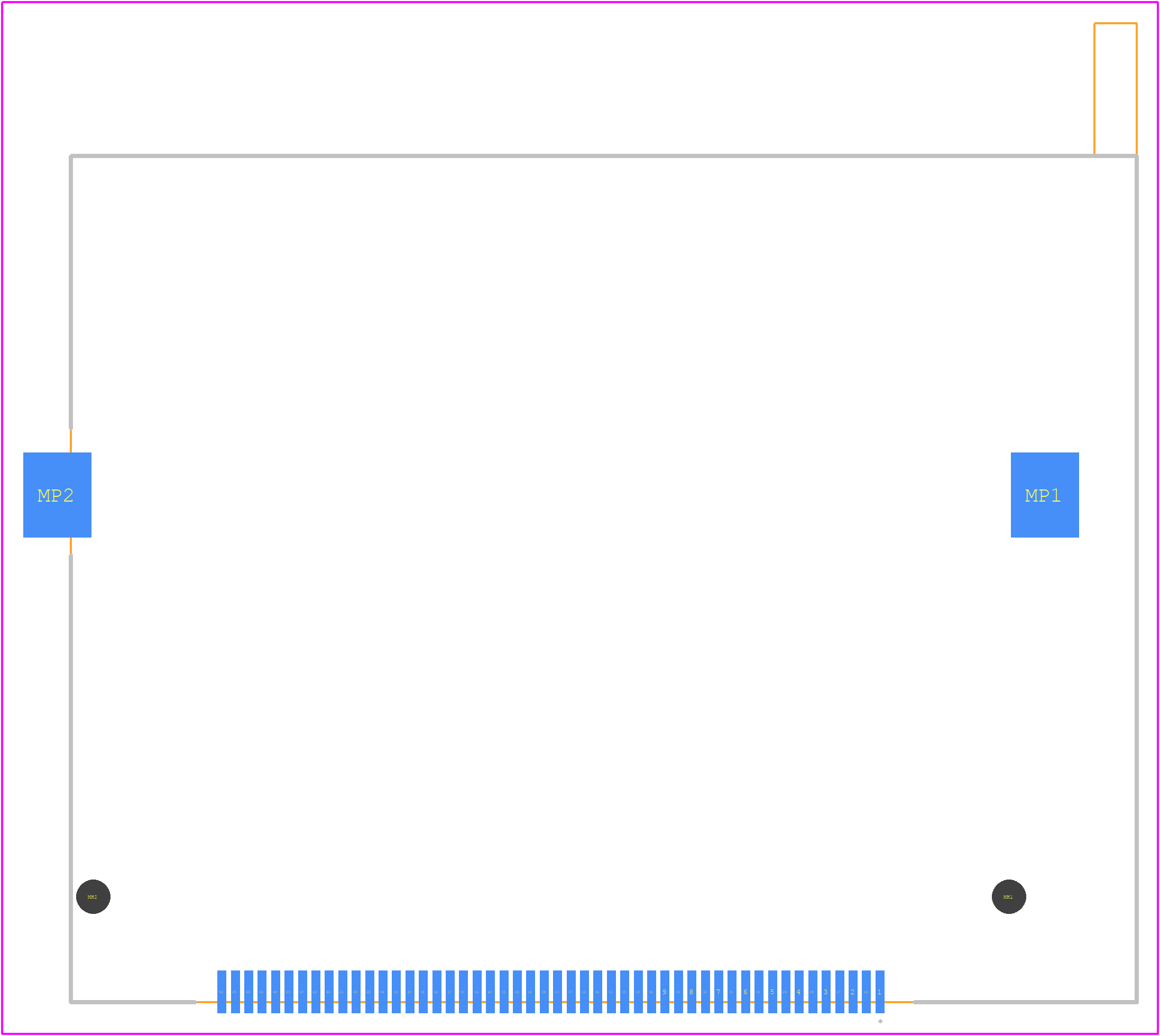

MI21-50PD-SF-EJL(71) - Hirose PCB footprint - Other - Other - MI21-50PD-SF-EJL(71)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MI21-50PD-SF-EJL(71)
Part Number MI21-50PD-SF-EJL(71)
Manufacturer Hirose
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - MI21-50PD-SF-EJL(71)-2
Released Date Aug 3, 2022
Last Modified Date Feb 6, 2026 7:07 AM UTC
Pinout / Pin List Click Here (Member Only)

MI21-50PD-SF-EJL(71) Details

Manufacturer Part Number:
MI21-50PD-SF-EJL(71)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
26 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
4.4
Connector Type:
PCMCIA CONNECTOR
Contact Finish Mating:
GOLD
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
50
UL Flammability Code:
94V-0

MI21-50PD-SF-EJL(71) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.5 N·m, but it's essential to consult the datasheet and follow the manufacturer's guidelines to ensure proper assembly and avoid damage.
Yes, the MI21-50PD-SF-EJL(71) is designed to withstand vibrations and shocks. However, it's crucial to follow the manufacturer's guidelines for mounting and assembly to ensure reliable performance.
The operating temperature range for the MI21-50PD-SF-EJL(71) is -40°C to 105°C. However, it's essential to consult the datasheet for specific temperature ratings and derating factors.
The MI21-50PD-SF-EJL(71) has a IP67 rating, making it suitable for outdoor and harsh environments. However, it's essential to follow the manufacturer's guidelines for sealing and assembly to ensure reliable performance.
The mating cycle life of the MI21-50PD-SF-EJL(71) is 500 cycles. However, this may vary depending on the application and usage. It's essential to consult the datasheet and manufacturer's guidelines for specific information.
