MI21-50PD-SF-EJR(71) - Hirose

Description: Memory Card Connectors COMPACT FLASH CONN TYPE 1&2 SMT GOLD

Download MI21-50PD-SF-EJR(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MI21-50PD-SF-EJR(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

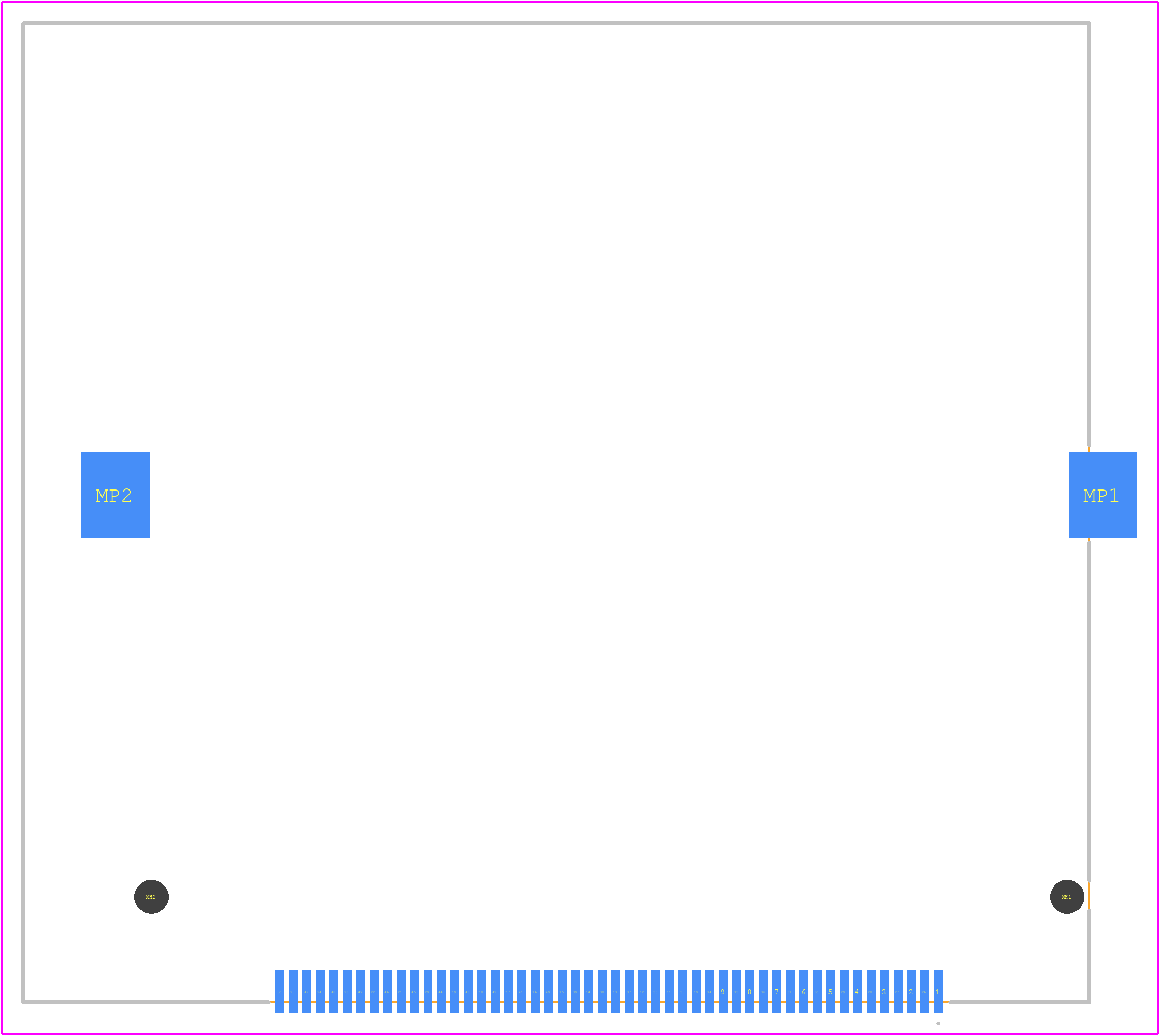

MI21-50PD-SF-EJR(71) - Hirose PCB footprint - Other - Other - MI21-50PD-SF-EJR(71)-1
click to zoom
3D Models
MI21-50PD-SF-EJR(71) - Hirose - 3D model - Other - MI21-50PD-SF-EJR(71)-1
click to zoom

MI21-50PD-SF-EJR(71) Details

  • Manufacturer Part Number:

    MI21-50PD-SF-EJR(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    4.4

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.635 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

MI21-50PD-SF-EJR(71) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the MI21-50PD-SF-EJR(71) is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
  • The maximum operating temperature for the MI21-50PD-SF-EJR(71) is 125°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the MI21-50PD-SF-EJR(71) is designed to be resistant to moisture and humidity, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability in harsh environments.
  • The mating cycle life of the MI21-50PD-SF-EJR(71) is 500 cycles, but it's recommended to consult the datasheet for specific information on mating cycle life and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MI21-50PD-SF-EJR(71) Overview

Use the download button to access the MI21-50PD-SF-EJR(71) schematic symbol, PCB footprint, and 3D model.
