MIC2025-1YMM - Microchip

Description: 140 mΩ Maximum On-Resistance • 2.7V to 5.5V Operating Range • 500 mA Minimum Continuous Output Current • Short-Circuit Protection with Thermal Shutdown • Fault Status Flag with 3 ms Filter Eliminates False Assertions • Undervoltage Lockout • Reverse Current Flow Blocking (No “Body Diode”) • Circuit Breaker Mode (MIC2075) Reduces Power Consumption • Logic-Compatible Input • Soft-Start Circuit • Low Quiescent Current • Pin Compatible with MIC2525 • UL File #E179633

Download MIC2025-1YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

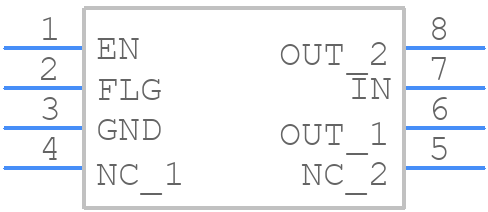

MIC2025-1YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2025-1YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP..
click to zoom
3D Models
MIC2025-1YMM - Microchip - 3D model - Small Outline Packages - MSOP..
click to zoom

MIC2025-1YMM Details

  • Manufacturer Part Number:

    MIC2025-1YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    2.5

  • Width:

    3 mm

MIC2025-1YMM Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC2025-1YMM involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are properly sized and placed close to the device. Also, ensure the PCB layout is well-designed, and the device is properly decoupled from the power supply. Additionally, follow the recommended component values and layout guidelines in the datasheet.
  • The MIC2025-1YMM is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
  • While MIC2025-1YMM is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. It's essential to consult with Microchip Technology Inc. or a qualified reliability engineer to determine the device's suitability for such applications.
  • To troubleshoot issues with MIC2025-1YMM, start by verifying the PCB layout and component values match the recommended design. Check for proper decoupling, input and output capacitor sizing, and thermal management. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance.
