- Part Number MIC2026-1BM
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MIC2026-1BM-1
- Released Date Dec 18, 2018
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
MIC2026-1BM Details
-
Manufacturer Part Number:
MIC2026-1BM
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
0
MIC2026-1BM Frequently Asked Questions (FAQs)
-
The maximum current rating of the MIC2026-1BM is 2A per channel, with a total current limit of 4A for both channels combined.
-
To ensure SOA compliance, ensure that the device operates within the recommended voltage and current limits, and that the thermal design is adequate to prevent overheating. Refer to the datasheet for specific guidelines.
-
Yes, the MIC2026-1BM is rated for operation up to 125°C, but thermal design and heat sinking may be required to ensure reliable operation. Consult the datasheet for thermal management guidelines.
-
Inrush current can be managed by using a soft-start circuit or a current-limiting resistor in series with the input. The MIC2026-1BM also has a built-in soft-start feature to help mitigate inrush current.
-
The minimum input voltage required for the MIC2026-1BM to operate is 4.5V, but it's recommended to use a minimum of 5V to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
MIC2026-1BM Overview

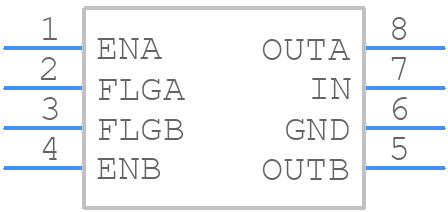

Use the download button to access the MIC2026-1BM schematic symbol, PCB footprint, and 3D model.
