MIC2026A-1YM-TR - Microchip

Description: Power Switch ICs - Power Distribution

Download MIC2026A-1YM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

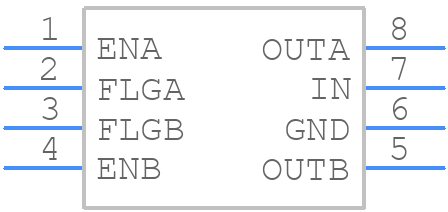

MIC2026A-1YM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2026A-1YM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 SOIC (M)
click to zoom
3D Models
MIC2026A-1YM-TR - Microchip - 3D model - Small Outline Packages - 8 SOIC (M)
click to zoom

MIC2026A-1YM-TR Details

  • Manufacturer Part Number:

    MIC2026A-1YM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.45V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.94 mm

MIC2026A-1YM-TR Frequently Asked Questions (FAQs)

  • A good thermal design should be used to minimize thermal resistance. A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The MIC2026A-1YM-TR should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal design, and ensure that the device is operated within its specified voltage and current ratings.
  • The MIC2026A-1YM-TR is an ESD-sensitive device. Handle the device by the body or the pins, and avoid touching the pins or the die. Use an anti-static wrist strap or mat, and store the device in an anti-static bag or container.
  • Yes, the MIC2026A-1YM-TR is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its quality and reliability.
