MIC2027-2YM-TR - Microchip

Description: Power Switch ICs - Power Distribution Quad USB High-Side Power Switch

Download MIC2027-2YM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

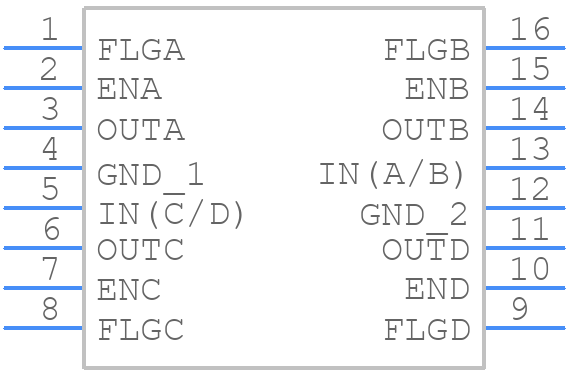

Symbol
MIC2027-2YM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2027-2YM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC (M)
click to zoom
3D Models
MIC2027-2YM-TR - Microchip - 3D model - Small Outline Packages - 16-Pin SOIC (M)
click to zoom

MIC2027-2YM-TR Details

  • Manufacturer Part Number:

    MIC2027-2YM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.93 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max (Isup):

    0.32 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.94 mm

MIC2027-2YM-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2027 datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
  • The MIC2027-2YM-TR has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the MIC2027-2YM-TR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is manufactured with high-reliability processes. However, it's essential to review the device's specifications and ensure it meets the specific requirements of your application.
  • Microchip provides a range of resources to help troubleshoot MIC2027-2YM-TR-related issues, including application notes, FAQs, and technical support. Start by reviewing the datasheet and application notes, then contact Microchip's technical support team for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2027-2YM-TR Overview

Use the download button to access the MIC2027-2YM-TR schematic symbol, PCB footprint, and 3D model.
