A good PCB layout for MIC2027-2YM involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a shielded inductor and keep the switching node (SW) away from sensitive analog circuits.
To ensure the MIC2027-2YM operates within the specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad on the bottom of the package helps to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the thermal pad.
When selecting external components for MIC2027-2YM, critical components to consider include the input and output capacitors, inductor, and diode. Choose components with low ESR, high ripple current, and high temperature ratings to ensure reliable operation.
To troubleshoot MIC2027-2YM oscillations or instability issues, check the PCB layout, component selection, and input/output voltage levels. Ensure the input voltage is within the specified range, and the output voltage is not exceeding the maximum rating. Also, verify that the inductor and capacitors are properly selected and placed.
When using MIC2027-2YM, key considerations for EMI filtering include using a common-mode choke, adding a shielded inductor, and placing a capacitor between the input and output lines. Additionally, ensure the PCB layout is optimized to minimize radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2027-2YM Overview

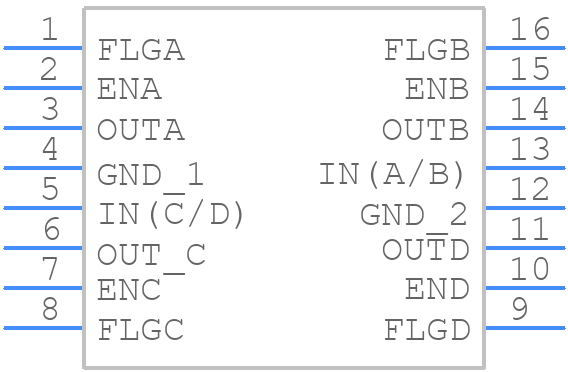

Use the download button to access the MIC2027-2YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC20,
or try a keyword search, such as Power Management Circuits
