MIC2043-2YM - Microchip

Description: Power Switch ICs - Power Distribution 39 mohm Low Voltage Switch

Download MIC2043-2YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

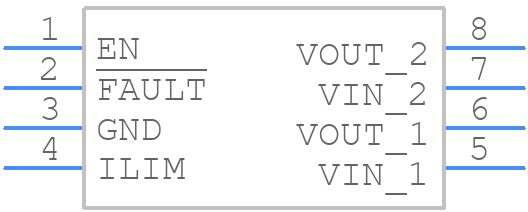

MIC2043-2YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2043-2YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC2043-2YM
click to zoom
3D Models
MIC2043-2YM - Microchip - 3D model - Small Outline Packages - MIC2043-2YM
click to zoom

MIC2043-2YM Details

  • Manufacturer Part Number:

    MIC2043-2YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.225V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MIC2043-2YM Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2043-2YM evaluation board design files, which can be downloaded from their website. The layout includes a solid ground plane, decoupling capacitors, and thermal vias to minimize EMI and thermal issues.
  • The MIC2043-2YM has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. Additionally, the device has a programmable startup delay timer that can be used to delay the startup sequence. Refer to the application note AN-215 for more information on startup sequencing.
  • The MIC2043-2YM is a high-current Power Distribution Switch (PDS) that can deliver up to 3A of continuous current to the load. However, the maximum current rating may vary depending on the ambient temperature and the PCB layout. Refer to the thermal derating curves in the datasheet for more information.
  • The MIC2043-2YM has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits that protect the device from voltage transients and faults. Additionally, external voltage supervisors and TVS diodes can be used to provide additional protection against overvoltage and undervoltage conditions.
  • The typical rise time and fall time of the MIC2043-2YM output switch are around 100ns and 50ns, respectively. However, these values may vary depending on the load capacitance and the output voltage. Refer to the datasheet for more information on the switching characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2043-2YM Overview

Use the download button to access the MIC2043-2YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC20, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
