MIC2044-1YTS-TR - Microchip

Description: Power Switch ICs - Power Distribution 21 mohm Low Voltage Switch

Download MIC2044-1YTS-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

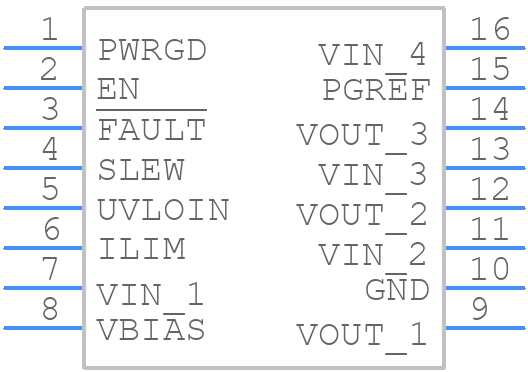

MIC2044-1YTS-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2044-1YTS-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16 -TSSOP
click to zoom
3D Models
MIC2044-1YTS-TR - Microchip - 3D model - Small Outline Packages - 16 -TSSOP
click to zoom

MIC2044-1YTS-TR Details

  • Manufacturer Part Number:

    MIC2044-1YTS-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP, TSSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    TSSOP-16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MIC2044-1YTS-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2044 datasheet, which includes guidelines for component placement, thermal management, and routing. Additionally, Microchip's application note AN1263 provides more detailed information on PCB layout considerations for high-current switching regulators.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, output current, and switching frequency. Microchip provides a list of recommended inductors in the MIC2044 datasheet, and also offers an inductor selection guide in application note AN1263.
  • The MIC2044-1YTS-TR has an operating junction temperature range of -40°C to +125°C, but the maximum ambient temperature depends on the specific application and the thermal management design. Microchip recommends following the thermal management guidelines in the datasheet and application notes to ensure reliable operation.
  • Yes, the MIC2044-1YTS-TR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is designed to operate in harsh environments. However, additional testing and validation may be required for specific applications, and Microchip recommends consulting with their technical support team for more information.
  • Microchip provides troubleshooting guidelines in the MIC2044 datasheet and application notes, which cover common issues and their solutions. Additionally, Microchip's technical support team can provide further assistance and guidance for specific issues.
